Worry-Free Quality

Factory-Approved Legal Modification
Over 10,000 km Full-Vehicle Durability Testing
Worry-Free After-Sales Support

More Comfortable Mobile Living

Electric Pop-Up Roof Tent with Dual Mode System
One-Touch Stop & Stay | Weather & Insect Protection
1.9 m² Spacious Living Space

Everyday Practicality Made Easier

Subtle SUV Styling for Urban Commuting
Rear Lift-Up Window for Easy Access
High-Mounted Brake Light for Safety

More Versatile Scenarios

Modular Magic Box System
Instant Camping & Fishing Mode Switch
All-Purpose Vehicle-to-Home Space

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get In Touch

Complete control over products allows us to ensure our customers receive the best quality prices and service.

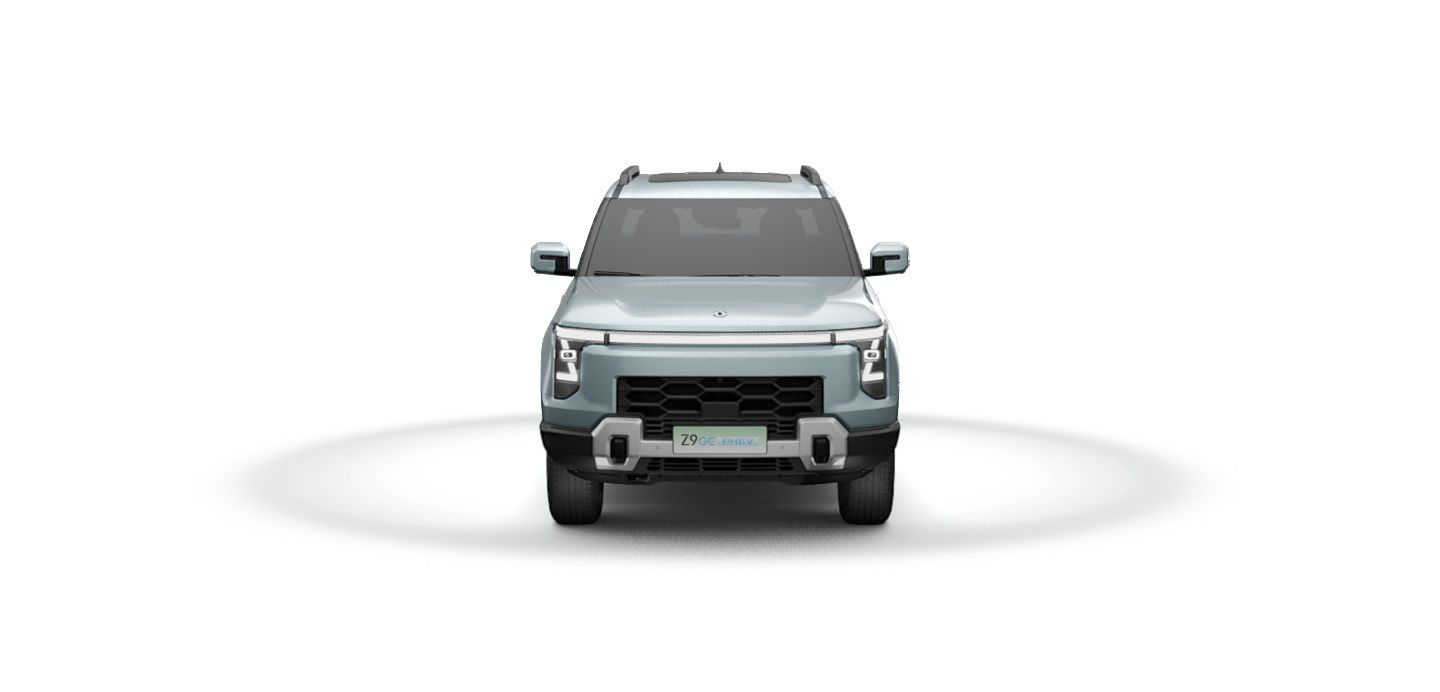

Z9GE PHEV Touring Edition SPECIFICATION

Vehicle Version			Touring Version				Touring Magic Box Version
Level			2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Fuel type			PHEV		PHEV		PHEV			Gasoline
Drive			2WD	4WD	2WD	4WD	2WD	4WD	4WD	2WD	4WD
Transmission			8AT	8AT	8AT	8AT	6MT	6MT	8AT	8AT	8AT
Vehicle Parameters		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm) (Loaded / Unloaded)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100	100	100	100	100	100	100	100	100
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Engine	Engine Type	M9T（400Nm）	–	–	–	–	●	●	●	–	–
		M9T（500Nm）	–	–	●	●	–	–	–	–	–
		4K31（400Nm）	●	●	–	–	–	–	–	●	●
Fuel system	Fuel type	Diesel	–	–	●	●	●	●	●	–	–
Fuel system	Fuel type	Gasoline	●	●	–	–	–	–	–	●	●
Gearbox	Manual transmission gear	6MT	–	–	–	–	●	●	–	–	–
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	–	●	–	–	–	●	●	●
		8AT (all terrain mode – without rock)	–	●	–	●	–	–	–	–	–
		8AT (All-Terrain Model – Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	–	○	–	○	–	–	–	–	–
Driving mechanism	Drive type	2WD	●	–	●	–	●	–	–	●	–
	Drive type	4WD (electronic control)	–	●	–	●	–	●	●	–	●
	Time-sharing four-wheel drive (BW)		–	●	–	●	–	●	●	–	●
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	○	○	○	○	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	–	–	–	–	–
	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	Autohold	●	●	●	●	●	●	●	●	●
	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	○	○	○	○	○	○	○	○	○
		Two-Way steering wheel adjustment	–	–	–	–	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	–	–	–	–	–
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	–	–	–	●	●
	Steering gear	Electronic booster → hydraulic	–	–	–	–	●	●	●	–	–
	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	–	–	–	–	●	●	–	–	●
	Rim of wheel	Aluminum wheel hub	●	●	●	●	○	○	●	●	●
	Cross country tire	AT tire 265/70 R17	–	○	–	○	–	○	○	–	○
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
Comfort & Convenience	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	–	–	–	–	–
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	–	–	–	–	–	–	–	–	–
		Vehicular PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	○	○	○	○	○
	Rear row	Air outlet: foot blowing	–	–	–	–	–	–	–	–	–
	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Mobile phone wireless charging	Charging power 50W	●	●	●	●	–	–	–	–	–
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Exterior	Side pedal plate	Fixed	○	○	○	○	○	○	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	○	○	○	○	○	○	○	○	○
	Antenna Types	Shark fin, shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		○	○	○	○	–	–	○	○	○
	Panoramic sunroof	Electric+electric abat vent	○	○	○	○	–	–	–	–	○
	Anti-roll frame	Standard+Metal	○	○	○	○	○	○	○	○	○
	Rear trailer hitch	One	●	●	●	●	–	–	–	–	–
	Outer rope hook	Four	–	–	–	–	○	○	○	○	○
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate – one side	Elastic fixing rope for storing fine parts	●	●	●	●	–	–	–	–	–
	Central lock of rear compartment door		●	●	●	●	–	–	–	–	–
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	–	–	–	–	○	○	○	○	○
	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	–	–	–	–	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	–	–	–	–	–
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	–	–	–	–	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	–	–	–	–	–
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	–	–	–	–	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	–	–	–	○	○
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
	Front wiper (boneless)	Induction; induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●
	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	–	–	–	–	–
		Headlight welcome	●	●	●	●	○	○	○	–	○
	Through lamp (through lamp)		○	○	○	○	–	–	–	–	–
	Front fog lamp	LED+Steering Assist	●	●	●	●	○	○	○	–	○
	Rear fog lamp+rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)	Regulations and Regulations	●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens (halogen)	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●
Interior	Sun visor (visor)	Driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	–	–	–	–	–
		Driver: soft PVC+cosmetic mirror	–	–	–	–	●	●	●	●	●
		Assistant driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	shallow upper part and deep lower part	–	–	–	–	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Black	●	●	●	●	–	–	–	–	–
		Orange	○	○	○	○	–	–	–	–	–
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Reading lamp		●	●	●	●	●	●	●	●	●
	GLASS BOX+READING LIGHT+INTERIOR LIGHT	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	–	–	–	–	○
	Coat and hat hook	Front 2 and rear 2 (2 on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder (cup holder)	Two central console	●	●	●	●	●	●	●	●	●
	Seat fabric	PVC	●	●	●	●	–	–	–	–	–
		Imitation of leather	–	–	–	–	○	○	●	●	●
		Fabric	–	–	–	–	●	●	●	●	●
	Driver seat adjustment	Way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	Way power seat+ventilation and heating gear 3	○	○	○	○	○	○	○	○	○
	Front passenger seat adjustment	Four Way manual seat	●	●	●	●	●	●	●	●	●
	Front passenger seat adjustment	Way power seat+ventilation 3rd gear	○	○	○	○	○	○	○	○	○
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	–	–	–	–	–	–	–	–	–
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	Rear seat back adjustable	The seat cushion can be flipped 4/6	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Audio & Connectivity	Inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	–	–	–	–	–
	Audio system	6Pcs (2 high+2 low+2 full frequency)	●	●	●	●	–	–	–	–	–
	Inch screen	Bluetooth+WIFI module+language (Spanish+English)	–	–	–	–	●	●	●	●	●
	Radio	AM+FM	–	–	–	–	●	●	●	●	●
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (2 low+2 full frequency)	–	–	–	–	●	●	●	●	●
Safety & Security	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	○	○	○	○	○	○	○	○	○
		Side air curtain	○	○	○	○	–	–	–	–	○
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Front radar		○	○	○	○	–	–	–	–	–
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		○	○	○	○	–	–	–	○	○
	Cruise control		●	●	●	●	●	●	●	●	●
	Cross-country cruise control	Creeping mode of motion	–	●	–	●	–	–	–	–	–
	Tank turning around		–	●	–	●	–	–	–	–	–
	Transfer Case	Central differential velocity	–	●	–	●	–	●	●	–	●
	Rear axle differential lock		–	○	–	○	–	○	○	–	○
	Sand Zone Kit		–	○	–	○	○	○	○	○	○
	Reserved retrofit switch	4 Pcs (1 for front engine compartment/1 for indoor roof/1 for chassis/1 under seat)	●	●	●	●	–	–	–	–	–
	BOS brake priority system		●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	–	–	–	–	–

Rugged Off-Road Design. Factory-Built at Its Peak.

Striking Futuristic Presence
Equipped with Off-Road Fender Flares, All-Terrain Wheels, and a Full-Width LED Front Light.
Off-Road Fenders | Rugged Wheels | Full-Width LED Headlight

Ultimate Comfort & Safety. Go Beyond Every Terrain with Ease.

Spacious Comfort
Extreme Safety
Flat Second-Row Floor. 90° Wide-Opening Rear Doors.
Engineered by Nissan Zone Body Technology.

Off-Road Performance. Conquer All Terrains.

Off-Road Grade Mobility Performance
31° Approach Angle | 26° Departure Angle
100% Maximum Gradeability | 235 mm Ground Clearance

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get In Touch

Complete control over products allows us to ensure our customers receive the best quality prices and service.

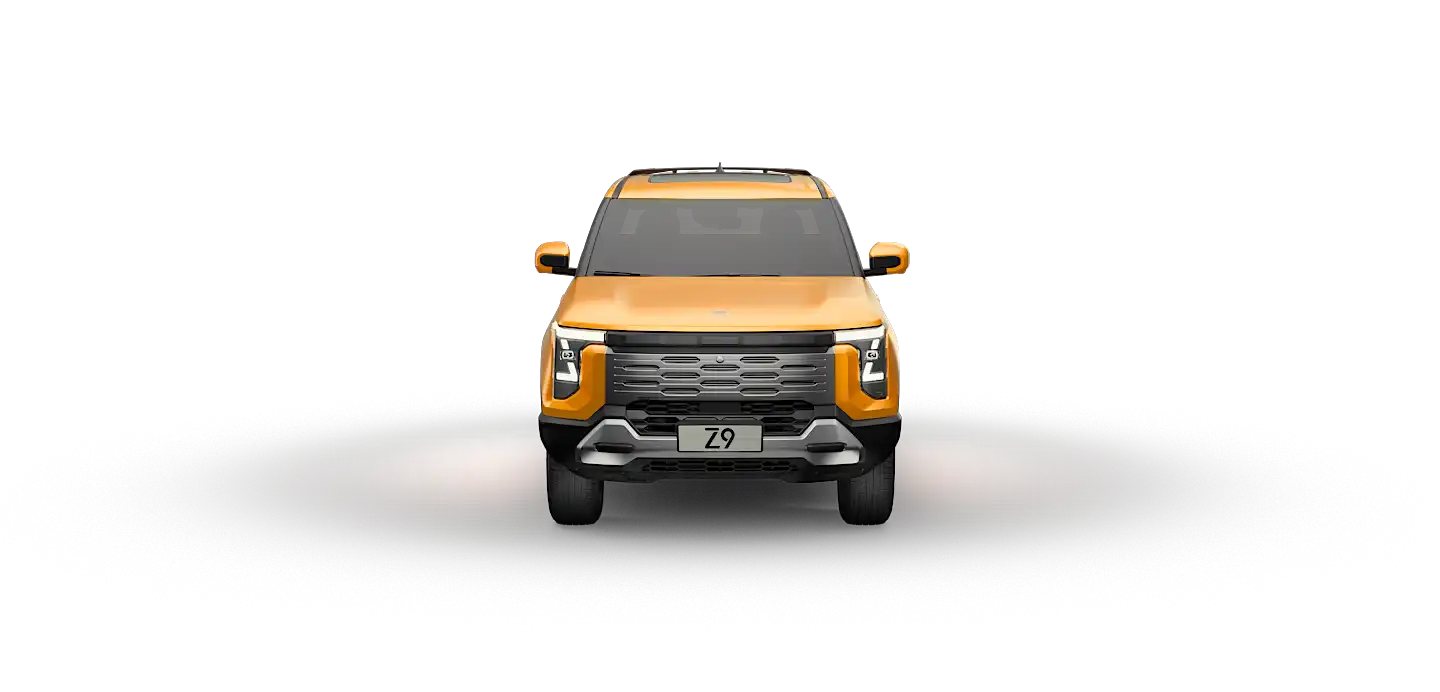

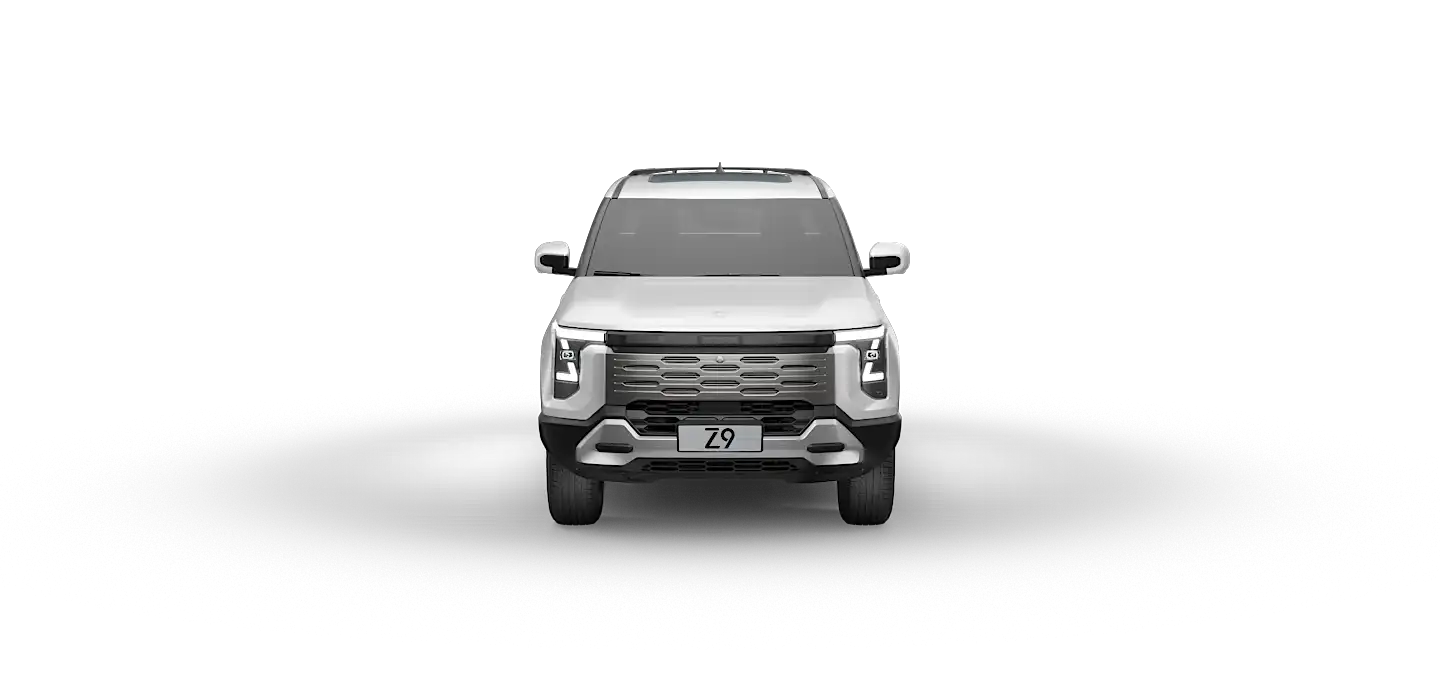

Z9 GTS SPECIFICATION

Vehicle Version			Passenger Verison				Commercial Version
Level			2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Fuel type			Gasoline		Diesel		Diesel			Gasoline
Drive			2WD	4WD	2WD	4WD	2WD	4WD	4WD	2WD	4WD
Transmission			8AT	8AT	8AT	8AT	6MT	6MT	8AT	8AT	8AT
Vehicle Parameters		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm) (Loaded / Unloaded)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100	100	100	100	100	100	100	100	100
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Engine	Engine Type	M9T（400Nm）	–	–	–	–	●	●	●	–	–
		M9T（500Nm）	–	–	●	●	–	–	–	–	–
		4K31（400Nm）	●	●	–	–	–	–	–	●	●
Fuel system	Fuel type	Diesel	–	–	●	●	●	●	●	–	–
Fuel system	Fuel type	Gasoline	●	●	–	–	–	–	–	●	●
Gearbox	Manual transmission gear	6MT	–	–	–	–	●	●	–	–	–
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	–	●	–	–	–	●	●	●
		8AT (all terrain mode – without rock)	–	●	–	●	–	–	–	–	–
		8AT (All-Terrain Model – Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	–	○	–	○	–	–	–	–	–
Driving mechanism	Drive type	2WD	●	–	●	–	●	–	–	●	–
	Drive type	4WD (electronic control)	–	●	–	●	–	●	●	–	●
	Time-sharing four-wheel drive (BW)		–	●	–	●	–	●	●	–	●
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	○	○	○	○	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	–	–	–	–	–
	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	Autohold	●	●	●	●	●	●	●	●	●
	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	○	○	○	○	○	○	○	○	○
		Two-Way steering wheel adjustment	–	–	–	–	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	–	–	–	–	–
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	–	–	–	●	●
	Steering gear	Electronic booster → hydraulic	–	–	–	–	●	●	●	–	–
	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	–	–	–	–	●	●	–	–	●
	Rim of wheel	Aluminum wheel hub	●	●	●	●	○	○	●	●	●
	Cross country tire	AT tire 265/70 R17	–	○	–	○	–	○	○	–	○
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
Comfort & Convenience	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	–	–	–	–	–
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	–	–	–	–	–	–	–	–	–
		Vehicular PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	○	○	○	○	○
	Rear row	Air outlet: foot blowing	–	–	–	–	–	–	–	–	–
	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Mobile phone wireless charging	Charging power 50W	●	●	●	●	–	–	–	–	–
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Exterior	Side pedal plate	Fixed	○	○	○	○	○	○	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	○	○	○	○	○	○	○	○	○
	Antenna Types	Shark fin, shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		○	○	○	○	–	–	○	○	○
	Panoramic sunroof	Electric+electric abat vent	○	○	○	○	–	–	–	–	○
	Anti-roll frame	Standard+Metal	○	○	○	○	○	○	○	○	○
	Rear trailer hitch	One	●	●	●	●	–	–	–	–	–
	Outer rope hook	Four	–	–	–	–	○	○	○	○	○
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate – one side	Elastic fixing rope for storing fine parts	●	●	●	●	–	–	–	–	–
	Central lock of rear compartment door		●	●	●	●	–	–	–	–	–
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	–	–	–	–	○	○	○	○	○
	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	–	–	–	–	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	–	–	–	–	–
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	–	–	–	–	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	–	–	–	–	–
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	–	–	–	–	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	–	–	–	○	○
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
	Front wiper (boneless)	Induction; induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●
	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	–	–	–	–	–
		Headlight welcome	●	●	●	●	○	○	○	–	○
	Through lamp (through lamp)		○	○	○	○	–	–	–	–	–
	Front fog lamp	LED+Steering Assist	●	●	●	●	○	○	○	–	○
	Rear fog lamp+rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)	Regulations and Regulations	●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens (halogen)	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●
Interior	Sun visor (visor)	Driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	–	–	–	–	–
		Driver: soft PVC+cosmetic mirror	–	–	–	–	●	●	●	●	●
		Assistant driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	shallow upper part and deep lower part	–	–	–	–	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Black	●	●	●	●	–	–	–	–	–
		Orange	○	○	○	○	–	–	–	–	–
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Reading lamp		●	●	●	●	●	●	●	●	●
	GLASS BOX+READING LIGHT+INTERIOR LIGHT	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	–	–	–	–	○
	Coat and hat hook	Front 2 and rear 2 (2 on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder (cup holder)	Two central console	●	●	●	●	●	●	●	●	●
	Seat fabric	PVC	●	●	●	●	–	–	–	–	–
		Imitation of leather	–	–	–	–	○	○	●	●	●
		Fabric	–	–	–	–	●	●	●	●	●
	Driver seat adjustment	Way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	Way power seat+ventilation and heating gear 3	○	○	○	○	○	○	○	○	○
	Front passenger seat adjustment	Four Way manual seat	●	●	●	●	●	●	●	●	●
	Front passenger seat adjustment	Way power seat+ventilation 3rd gear	○	○	○	○	○	○	○	○	○
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	–	–	–	–	–	–	–	–	–
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	Rear seat back adjustable	The seat cushion can be flipped 4/6	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Audio & Connectivity	Inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	–	–	–	–	–
	Audio system	6Pcs (2 high+2 low+2 full frequency)	●	●	●	●	–	–	–	–	–
	Inch screen	Bluetooth+WIFI module+language (Spanish+English)	–	–	–	–	●	●	●	●	●
	Radio	AM+FM	–	–	–	–	●	●	●	●	●
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (2 low+2 full frequency)	–	–	–	–	●	●	●	●	●
Safety & Security	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	○	○	○	○	○	○	○	○	○
		Side air curtain	○	○	○	○	–	–	–	–	○
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Front radar		○	○	○	○	–	–	–	–	–
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		○	○	○	○	–	–	–	○	○
	Cruise control		●	●	●	●	●	●	●	●	●
	Cross-country cruise control	Creeping mode of motion	–	●	–	●	–	–	–	–	–
	Tank turning around		–	●	–	●	–	–	–	–	–
	Transfer Case	Central differential velocity	–	●	–	●	–	●	●	–	●
	Rear axle differential lock		–	○	–	○	–	○	○	–	○
	Sand Zone Kit		–	○	–	○	○	○	○	○	○
	Reserved retrofit switch	4 Pcs (1 for front engine compartment/1 for indoor roof/1 for chassis/1 under seat)	●	●	●	●	–	–	–	–	–
	BOS brake priority system		●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	–	–	–	–	–

360°VR

360°

IF YOU NEED OTHER COLORS,YOU CAN CONSULT US

Worry-Free Economy

Worry-Free Economy
Worry-Free Supply & Support
Optional Factory-Installed 1.5 m² Mobile Landing Pad
Nearly 600 L OEM Water Tank
Seamless Compatibility for Multi-Vehicle Parking and Deployment

Worry-Free Supply

Optional Factory 1.5 m² Mobile Landing Platform
Seamless Multi-Vehicle Compatibility for Hassle-Free Parking
Smoother Supply, Higher Efficiency
Zero Waiting for Charging

Worry-Free Driving

24 kW Ultra-Fast Charging
Triple Power Sources: Fuel / Electric / Hybrid
Minimum Ground Clearance: 232 mm
Part-Time Four-Wheel Drive System

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get In Touch

Complete control over products allows us to ensure our customers receive the best quality prices and service.

Z9GE PHEV DroneVersion SPECIFICATION

Vehicle Version			DroneVersion				Drone Exploration 4WD Edition
Level			2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Fuel type			PHEV		PHEV		PHEV			Gasoline
Drive			2WD	4WD	2WD	4WD	2WD	4WD	4WD	2WD	4WD
Transmission			8AT	8AT	8AT	8AT	6MT	6MT	8AT	8AT	8AT
Vehicle Parameters		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm) (Loaded / Unloaded)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100	100	100	100	100	100	100	100	100
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Engine	Engine Type	M9T（400Nm）	–	–	–	–	●	●	●	–	–
		M9T（500Nm）	–	–	●	●	–	–	–	–	–
		4K31（400Nm）	●	●	–	–	–	–	–	●	●
Fuel system	Fuel type	Diesel	–	–	●	●	●	●	●	–	–
Fuel system	Fuel type	Gasoline	●	●	–	–	–	–	–	●	●
Gearbox	Manual transmission gear	6MT	–	–	–	–	●	●	–	–	–
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	–	●	–	–	–	●	●	●
		8AT (all terrain mode – without rock)	–	●	–	●	–	–	–	–	–
		8AT (All-Terrain Model – Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	–	○	–	○	–	–	–	–	–
Driving mechanism	Drive type	2WD	●	–	●	–	●	–	–	●	–
	Drive type	4WD (electronic control)	–	●	–	●	–	●	●	–	●
	Time-sharing four-wheel drive (BW)		–	●	–	●	–	●	●	–	●
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	○	○	○	○	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	–	–	–	–	–
	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	Autohold	●	●	●	●	●	●	●	●	●
	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	○	○	○	○	○	○	○	○	○
		Two-Way steering wheel adjustment	–	–	–	–	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	–	–	–	–	–
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	–	–	–	●	●
	Steering gear	Electronic booster → hydraulic	–	–	–	–	●	●	●	–	–
	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	–	–	–	–	●	●	–	–	●
	Rim of wheel	Aluminum wheel hub	●	●	●	●	○	○	●	●	●
	Cross country tire	AT tire 265/70 R17	–	○	–	○	–	○	○	–	○
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
Comfort & Convenience	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	–	–	–	–	–
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	–	–	–	–	–	–	–	–	–
		Vehicular PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	○	○	○	○	○
	Rear row	Air outlet: foot blowing	–	–	–	–	–	–	–	–	–
	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Mobile phone wireless charging	Charging power 50W	●	●	●	●	–	–	–	–	–
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Exterior	Side pedal plate	Fixed	○	○	○	○	○	○	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	○	○	○	○	○	○	○	○	○
	Antenna Types	Shark fin, shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		○	○	○	○	–	–	○	○	○
	Panoramic sunroof	Electric+electric abat vent	○	○	○	○	–	–	–	–	○
	Anti-roll frame	Standard+Metal	○	○	○	○	○	○	○	○	○
	Rear trailer hitch	One	●	●	●	●	–	–	–	–	–
	Outer rope hook	Four	–	–	–	–	○	○	○	○	○
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate – one side	Elastic fixing rope for storing fine parts	●	●	●	●	–	–	–	–	–
	Central lock of rear compartment door		●	●	●	●	–	–	–	–	–
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	–	–	–	–	○	○	○	○	○
	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	–	–	–	–	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	–	–	–	–	–
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	–	–	–	–	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	–	–	–	–	–
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	–	–	–	–	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	–	–	–	○	○
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
	Front wiper (boneless)	Induction; induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●
	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	–	–	–	–	–
		Headlight welcome	●	●	●	●	○	○	○	–	○
	Through lamp (through lamp)		○	○	○	○	–	–	–	–	–
	Front fog lamp	LED+Steering Assist	●	●	●	●	○	○	○	–	○
	Rear fog lamp+rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)	Regulations and Regulations	●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens (halogen)	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●
Interior	Sun visor (visor)	Driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	–	–	–	–	–
		Driver: soft PVC+cosmetic mirror	–	–	–	–	●	●	●	●	●
		Assistant driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	shallow upper part and deep lower part	–	–	–	–	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Black	●	●	●	●	–	–	–	–	–
		Orange	○	○	○	○	–	–	–	–	–
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Reading lamp		●	●	●	●	●	●	●	●	●
	GLASS BOX+READING LIGHT+INTERIOR LIGHT	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	–	–	–	–	○
	Coat and hat hook	Front 2 and rear 2 (2 on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder (cup holder)	Two central console	●	●	●	●	●	●	●	●	●
	Seat fabric	PVC	●	●	●	●	–	–	–	–	–
		Imitation of leather	–	–	–	–	○	○	●	●	●
		Fabric	–	–	–	–	●	●	●	●	●
	Driver seat adjustment	Way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	Way power seat+ventilation and heating gear 3	○	○	○	○	○	○	○	○	○
	Front passenger seat adjustment	Four Way manual seat	●	●	●	●	●	●	●	●	●
	Front passenger seat adjustment	Way power seat+ventilation 3rd gear	○	○	○	○	○	○	○	○	○
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	–	–	–	–	–	–	–	–	–
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	Rear seat back adjustable	The seat cushion can be flipped 4/6	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Audio & Connectivity	Inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	–	–	–	–	–
	Audio system	6Pcs (2 high+2 low+2 full frequency)	●	●	●	●	–	–	–	–	–
	Inch screen	Bluetooth+WIFI module+language (Spanish+English)	–	–	–	–	●	●	●	●	●
	Radio	AM+FM	–	–	–	–	●	●	●	●	●
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (2 low+2 full frequency)	–	–	–	–	●	●	●	●	●
Safety & Security	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	○	○	○	○	○	○	○	○	○
		Side air curtain	○	○	○	○	–	–	–	–	○
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Front radar		○	○	○	○	–	–	–	–	–
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		○	○	○	○	–	–	–	○	○
	Cruise control		●	●	●	●	●	●	●	●	●
	Cross-country cruise control	Creeping mode of motion	–	●	–	●	–	–	–	–	–
	Tank turning around		–	●	–	●	–	–	–	–	–
	Transfer Case	Central differential velocity	–	●	–	●	–	●	●	–	●
	Rear axle differential lock		–	○	–	○	–	○	○	–	○
	Sand Zone Kit		–	○	–	○	○	○	○	○	○
	Reserved retrofit switch	4 Pcs (1 for front engine compartment/1 for indoor roof/1 for chassis/1 under seat)	●	●	●	●	–	–	–	–	–
	BOS brake priority system		●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	–	–	–	–	–

360°VR

360°

IF YOU NEED OTHER COLORS,YOU CAN CONSULT US

Next-Generation Hybrid Power

Ultra-Strong Powertrain Performance
High Value & High Efficiency
Three Power Sources | 800 N·m Combined Torque
0–100 km/h in 7.6 s | Over 3-Ton Towing Capacity
135 km Pure Electric Range

A New Generation of Smart Technology

Intelligent Cockpit
Intelligent Interaction
Intelligent Infotainment System
Power Tailgate + Electric Cargo Cover + Power Side Steps
Four Intelligent Modes for Every Scenario: Camping, Rest, Protection & Car Wash
iFlytek AI Voice Assistant

A New Generation of Premium Luxury

Premium Comfort Seating
Versatile Multi-Function Space
Panoramic Driving Visibility
Luxury Driving Control Experience
Luxury Flat-Floor Rear Space
Ultra-Comfortable Seating Experience
1650 mm Wide Track Width
Comfortable Brake Pedal Feel: 0.3s Response Time to Reach 0.5g Deceleration

A New Era of Safety

Body Safety Engineering
Battery Safety System
Intelligent Safety System
Higher-Than-Class High-Strength Steel Proportion in the Frame Structure
Four-Dimensional Safety Protection System
Effortless Driving Across All Road Conditions

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get In Touch

Complete control over products allows us to ensure our customers receive the best quality prices and service.

Z9GE PHEV SPECIFICATION

Vehicle Version			Passenger Verison				Commercial Version
Level			2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Fuel type			PHEV		PHEV		PHEV			Gasoline
Drive			2WD	4WD	2WD	4WD	2WD	4WD	4WD	2WD	4WD
Transmission			8AT	8AT	8AT	8AT	6MT	6MT	8AT	8AT	8AT
Vehicle Parameters		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm) (Loaded / Unloaded)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100	100	100	100	100	100	100	100	100
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Engine	Engine Type	M9T（400Nm）	–	–	–	–	●	●	●	–	–
		M9T（500Nm）	–	–	●	●	–	–	–	–	–
		4K31（400Nm）	●	●	–	–	–	–	–	●	●
Fuel system	Fuel type	Diesel	–	–	●	●	●	●	●	–	–
Fuel system	Fuel type	Gasoline	●	●	–	–	–	–	–	●	●
Gearbox	Manual transmission gear	6MT	–	–	–	–	●	●	–	–	–
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	–	●	–	–	–	●	●	●
		8AT (all terrain mode – without rock)	–	●	–	●	–	–	–	–	–
		8AT (All-Terrain Model – Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	–	○	–	○	–	–	–	–	–
Driving mechanism	Drive type	2WD	●	–	●	–	●	–	–	●	–
	Drive type	4WD (electronic control)	–	●	–	●	–	●	●	–	●
	Time-sharing four-wheel drive (BW)		–	●	–	●	–	●	●	–	●
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	○	○	○	○	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	–	–	–	–	–
	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	Autohold	●	●	●	●	●	●	●	●	●
	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	○	○	○	○	○	○	○	○	○
		Two-Way steering wheel adjustment	–	–	–	–	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	–	–	–	–	–
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	–	–	–	●	●
	Steering gear	Electronic booster → hydraulic	–	–	–	–	●	●	●	–	–
	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	–	–	–	–	●	●	–	–	●
	Rim of wheel	Aluminum wheel hub	●	●	●	●	○	○	●	●	●
	Cross country tire	AT tire 265/70 R17	–	○	–	○	–	○	○	–	○
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
Comfort & Convenience	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	–	–	–	–	–
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	–	–	–	–	–	–	–	–	–
		Vehicular PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	○	○	○	○	○
	Rear row	Air outlet: foot blowing	–	–	–	–	–	–	–	–	–
	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Mobile phone wireless charging	Charging power 50W	●	●	●	●	–	–	–	–	–
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Exterior	Side pedal plate	Fixed	○	○	○	○	○	○	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	○	○	○	○	○	○	○	○	○
	Antenna Types	Shark fin, shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		○	○	○	○	–	–	○	○	○
	Panoramic sunroof	Electric+electric abat vent	○	○	○	○	–	–	–	–	○
	Anti-roll frame	Standard+Metal	○	○	○	○	○	○	○	○	○
	Rear trailer hitch	One	●	●	●	●	–	–	–	–	–
	Outer rope hook	Four	–	–	–	–	○	○	○	○	○
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate – one side	Elastic fixing rope for storing fine parts	●	●	●	●	–	–	–	–	–
	Central lock of rear compartment door		●	●	●	●	–	–	–	–	–
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	–	–	–	–	○	○	○	○	○
	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	–	–	–	–	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	–	–	–	–	–
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	–	–	–	–	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	–	–	–	–	–
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	–	–	–	–	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	–	–	–	○	○
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
	Front wiper (boneless)	Induction; induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●
	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	–	–	–	–	–
		Headlight welcome	●	●	●	●	○	○	○	–	○
	Through lamp (through lamp)		○	○	○	○	–	–	–	–	–
	Front fog lamp	LED+Steering Assist	●	●	●	●	○	○	○	–	○
	Rear fog lamp+rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)	Regulations and Regulations	●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens (halogen)	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●
Interior	Sun visor (visor)	Driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	–	–	–	–	–
		Driver: soft PVC+cosmetic mirror	–	–	–	–	●	●	●	●	●
		Assistant driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	shallow upper part and deep lower part	–	–	–	–	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Black	●	●	●	●	–	–	–	–	–
		Orange	○	○	○	○	–	–	–	–	–
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Reading lamp		●	●	●	●	●	●	●	●	●
	GLASS BOX+READING LIGHT+INTERIOR LIGHT	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	–	–	–	–	○
	Coat and hat hook	Front 2 and rear 2 (2 on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder (cup holder)	Two central console	●	●	●	●	●	●	●	●	●
	Seat fabric	PVC	●	●	●	●	–	–	–	–	–
		Imitation of leather	–	–	–	–	○	○	●	●	●
		Fabric	–	–	–	–	●	●	●	●	●
	Driver seat adjustment	Way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	Way power seat+ventilation and heating gear 3	○	○	○	○	○	○	○	○	○
	Front passenger seat adjustment	Four Way manual seat	●	●	●	●	●	●	●	●	●
	Front passenger seat adjustment	Way power seat+ventilation 3rd gear	○	○	○	○	○	○	○	○	○
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	–	–	–	–	–	–	–	–	–
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	Rear seat back adjustable	The seat cushion can be flipped 4/6	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Audio & Connectivity	Inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	–	–	–	–	–
	Audio system	6Pcs (2 high+2 low+2 full frequency)	●	●	●	●	–	–	–	–	–
	Inch screen	Bluetooth+WIFI module+language (Spanish+English)	–	–	–	–	●	●	●	●	●
	Radio	AM+FM	–	–	–	–	●	●	●	●	●
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (2 low+2 full frequency)	–	–	–	–	●	●	●	●	●
Safety & Security	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	○	○	○	○	○	○	○	○	○
		Side air curtain	○	○	○	○	–	–	–	–	○
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Front radar		○	○	○	○	–	–	–	–	–
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		○	○	○	○	–	–	–	○	○
	Cruise control		●	●	●	●	●	●	●	●	●
	Cross-country cruise control	Creeping mode of motion	–	●	–	●	–	–	–	–	–
	Tank turning around		–	●	–	●	–	–	–	–	–
	Transfer Case	Central differential velocity	–	●	–	●	–	●	●	–	●
	Rear axle differential lock		–	○	–	○	–	○	○	–	○
	Sand Zone Kit		–	○	–	○	○	○	○	○	○
	Reserved retrofit switch	4 Pcs (1 for front engine compartment/1 for indoor roof/1 for chassis/1 under seat)	●	●	●	●	–	–	–	–	–
	BOS brake priority system		●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	–	–	–	–	–

360°VR

360°

IF YOU NEED OTHER COLORS,YOU CAN CONSULT US

Core Features

Super Power

Fuel: The Golden Power Combination Renault-Nissan Alliance M9T engine ZF 8AT Gearbox
Maximum Torque: 500N·m Maximum Power: 140kW

Super Off-road Capability

Approach angle 31°, departure angle 26°. Ground clearance 240 mm.
Minimum turning diameter 13.5 meters. Capable of tackling 100% gradients.
More than 12 driving modes, including three locks, tank steering, and off-road driving.

Super Easy to Drive

The all-new EEA 3.0 domain controller integrates an electronic and electrical architecture to create an intelligent cockpit, representing the mainstream level for passenger vehicles.

Super Safety

Designed to meet C-NCAP five-star safety standards, the chassis uses 97% high-strength steel with a torsional stiffness of 4000 N·m/deg; the body uses 70% high-strength steel with a torsional stiffness of 2000 N·m/deg.

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get a Quote

We're Ready To Assist You Anytime

Z9 SPECIFICATION

Explanation of symbols："S" Standard；"o" Opt; "-" No such equipment. ZNA reserves the right for any adjustment or amendment. The final configuration is subject to confirmation by local distributors due to varying regulatory requirements in different countries.

Vehicle Version			Passenger Verison				Commercial Version
Level			2WD AT	4WD AT	2WD AT	4WD AT	2WD MT	4WD MT	4WD AT	2WD AT	4WD AT
Fuel type			Gasoline		Diesel		Diesel			Gasoline
Drive			2WD	4WD	2WD	4WD	2WD	4WD	4WD	2WD	4WD
Transmission			8AT	8AT	8AT	8AT	6MT	6MT	8AT	8AT	8AT
Vehicle Parameters		L×W×H (mm)	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950	552019601950
		Wheelbase (mm)	3300	3300	3300	3300	3300	3300	3300	3300	3300
		Track Width (Front/Rear) (mm)	1650	1650	1650	1650	1650	1650	1650	1650	1650
		Cargo Box Dimensions L×W×H (mm)	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
		Minimum Turning Radius (m)	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75	6.75
		Minimum Ground Clearance (mm) (Loaded / Unloaded)	240/224	240/224	240/224	240/224	240/209	240/209	240/209	240/209	240/209
		Curb weight of the vehicle (kg)	2005	2140	2005	2240	2075	2205	2055	2280	2190
		Payload capacity (kg)	865	865	865	865	1175	1175	865	865	865
		Approach Angle/Departure Angle (°)(unloaded)	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
		Maximum Gradeability (%)	100	100	100	100	100	100	100	100	100
		Seating Capacity (persons)	5	5	5	5	5	5	5	5	5
		Fuel Tank Capacity (L)	73	73	73	73	73	73	73	73	73
		Maximum speed (km/h)	160	160	170	170	160	160	160	160	160
Engine	Engine Type	M9T（400Nm）	–	–	–	–	●	●	●	–	–
		M9T（500Nm）	–	–	●	●	–	–	–	–	–
		4K31（400Nm）	●	●	–	–	–	–	–	●	●
Fuel system	Fuel type	Diesel	–	–	●	●	●	●	●	–	–
Fuel system	Fuel type	Gasoline	●	●	–	–	–	–	–	●	●
Gearbox	Manual transmission gear	6MT	–	–	–	–	●	●	–	–	–
	Automatic transmission gear	8AT (standard, economical, sports, snow mode)	●	–	●	–	–	–	●	●	●
		8AT (all terrain mode – without rock)	–	●	–	●	–	–	–	–	–
		8AT (All-Terrain Model – Standard, Economic, Sports, Snow, Desert, Rock, Mud, Expert Model)	–	○	–	○	–	–	–	–	–
Driving mechanism	Drive type	2WD	●	–	●	–	●	–	–	●	–
	Drive type	4WD (electronic control)	–	●	–	●	–	●	●	–	●
	Time-sharing four-wheel drive (BW)		–	●	–	●	–	●	●	–	●
	Front suspension type	Double wishbone+stabilizer bar	●	●	●	●	●	●	●	●	●
	Rear suspension type	Plate spring	○	○	○	○	●	●	●	●	●
	Rear suspension type	Five-connecting rod	●	●	●	●	–	–	–	–	–
	Brake	Four-wheel disc brake	●	●	●	●	●	●	●	●	●
	Hand brake	Electronic hand brake	●	●	●	●	●	●	●	●	●
	Hand brake	Autohold	●	●	●	●	●	●	●	●	●
	Steering wheel	Foaming	●	●	●	●	●	●	●	●	●
		Leather (ultra-fiber leather+cotton pad)	○	○	○	○	○	○	○	○	○
		Two-Way steering wheel adjustment	–	–	–	–	●	●	●	●	●
		Four-way adjustment of steering wheel	●	●	●	●	–	–	–	–	–
		Multi-function steering wheel (cruise control, audio control, bluetooth telephone, etc.)	●	●	●	●	●	●	●	●	●
	Steering gear	Electronic power assistance	●	●	●	●	–	–	–	●	●
	Steering gear	Electronic booster → hydraulic	–	–	–	–	●	●	●	–	–
	Tire specification	265/65 R18	●	●	●	●	●	●	●	●	●
	Rim of wheel	Steel wheel hub	–	–	–	–	●	●	–	–	●
	Rim of wheel	Aluminum wheel hub	●	●	●	●	○	○	●	●	●
	Cross country tire	AT tire 265/70 R17	–	○	–	○	–	○	○	–	○
	Spare tire	Same as main tire+steel wheel	●	●	●	●	●	●	●	●	●
Comfort & Convenience	LCD meter (10 inches)		●	●	●	●	●	●	●	●	●
	Multi-screen linkage		●	●	●	●	–	–	–	–	–
	Indications&Alarms	Water temperature warning lamp	●	●	●	●	●	●	●	●	●
		Warning lamp for door unclosed+door status display	●	●	●	●	●	●	●	●	●
		Oil volume warning lamp	●	●	●	●	●	●	●	●	●
		Engine hood unclosed reminder+status display	●	●	●	●	●	●	●	●	●
		Oil pressure warning lamp	●	●	●	●	●	●	●	●	●
		Seat belt not fastened alarm (driver side+front passenger side)	●	●	●	●	●	●	●	●	●
	Automatic air conditioning	Single temperature zone	●	●	●	●	●	●	●	●	●
		Dual temperature zone	–	–	–	–	–	–	–	–	–
		Vehicular PM2.5 filtering	●	●	●	●	●	●	●	●	●
	Rear row	Air outlet: face blowing	●	●	●	●	○	○	○	○	○
	Rear row	Air outlet: foot blowing	–	–	–	–	–	–	–	–	–
	12V power supply	Front row	●	●	●	●	●	●	●	●	●
	Mobile phone wireless charging	Charging power 50W	●	●	●	●	–	–	–	–	–
	Type-C interface/USB interface		●	●	●	●	●	●	●	●	●
Exterior	Side pedal plate	Fixed	○	○	○	○	○	○	●	●	●
	Roof rack	Longitudinal rail+aluminum alloy	○	○	○	○	○	○	○	○	○
	Antenna Types	Shark fin, shark fin	●	●	●	●	●	●	●	●	●
	Front trailer hitch	One	●	●	●	●	●	●	●	●	●
	Rear traction device		○	○	○	○	–	–	○	○	○
	Panoramic sunroof	Electric+electric abat vent	○	○	○	○	–	–	–	–	○
	Anti-roll frame	Standard+Metal	○	○	○	○	○	○	○	○	○
	Rear trailer hitch	One	●	●	●	●	–	–	–	–	–
	Outer rope hook	Four	–	–	–	–	○	○	○	○	○
	Inner rope hook	Four	●	●	●	●	●	●	●	●	●
	Sloping down of rear compartment door		●	●	●	●	●	●	●	●	●
	Inboard storage box of container side plate – one side	Elastic fixing rope for storing fine parts	●	●	●	●	–	–	–	–	–
	Central lock of rear compartment door		●	●	●	●	–	–	–	–	–
	Rear compartment shield	Painting and spraying	●	●	●	●	●	●	●	●	●
	Cargo box saver	Mounted container kit	–	–	–	–	○	○	○	○	○
	Front door glass	Green Glass	●	●	●	●	●	●	●	●	●
	Rear door glass	Green Glass	–	–	–	–	●	●	●	●	●
	Rear door glass	Grey glass	●	●	●	●	–	–	–	–	–
	Front windshield glass	Green glass+UV protection+heat protection	●	●	●	●	●	●	●	●	●
	Rear windshield glass	Green glass+defrosting heating	–	–	–	–	●	●	●	●	●
	Rear windshield glass	Grey glass+defrosting heating	●	●	●	●	–	–	–	–	–
	Door window regulator	Driver: one-button lifting+anti-pinch+electric;	●	●	●	●	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric regulation	–	–	–	–	●	●	●	●	●
	Exterior rearview mirror (body color+LED direction lamp)	Electric adjustment+electric folding+headlamp	●	●	●	●	–	–	–	○	○
	Interior rearview mirror	Manual anti-dazzle	●	●	●	●	●	●	●	●	●
	Front wiper (boneless)	Induction; induction; High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●	●	●	●
	Headlamp (s)	All LEDs	●	●	●	●	●	●	●	●	●
		Headlight automatic lighting (regulation)+headlamp delay off+ultra-low beam mode	●	●	●	●	●	●	●	●	●
		Electric height adjustable	●	●	●	●	●	●	●	●	●
		Direction lamp realizes flowing water	●	●	●	●	–	–	–	–	–
		Headlight welcome	●	●	●	●	○	○	○	–	○
	Through lamp (through lamp)		○	○	○	○	–	–	–	–	–
	Front fog lamp	LED+Steering Assist	●	●	●	●	○	○	○	–	○
	Rear fog lamp+rear reversing lamp	Double fog and double reversing	●	●	●	●	●	●	●	●	●
	High brake lamp (LED)	Regulations and Regulations	●	●	●	●	●	●	●	●	●
	Rear combination lamp	LED	●	●	●	●	●	●	●	●	●
	LED daytime running light	Integrated inside the headlights	●	●	●	●	●	●	●	●	●
	License plate lamp	Halogens (halogen)	●	●	●	●	●	●	●	●	●
	Rear box lamp	Integrated in high brake lamp	●	●	●	●	●	●	●	●	●
Interior	Sun visor (visor)	Driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	–	–	–	–	–
		Driver: soft PVC+cosmetic mirror	–	–	–	–	●	●	●	●	●
		Assistant driver: sun visor, soft PVC, cosmetic mirror	●	●	●	●	●	●	●	●	●
	Interior basic color matching	shallow upper part and deep lower part	–	–	–	–	●	●	●	●	●
	Interior basic color matching (two color matching in parallel)	Black	●	●	●	●	–	–	–	–	–
		Orange	○	○	○	○	–	–	–	–	–
	Central storage box armrest	Soft pack	●	●	●	●	●	●	●	●	●
	Floor	Short pile carpet	●	●	●	●	●	●	●	●	●
	Reading lamp		●	●	●	●	●	●	●	●	●
	GLASS BOX+READING LIGHT+INTERIOR LIGHT	Interior lamp: one lamp on both sides of the rear row+touch switch	●	●	●	●	–	–	–	–	○
	Coat and hat hook	Front 2 and rear 2 (2 on the front passenger side of the central console)	●	●	●	●	●	●	●	●	●
	Cup holder (cup holder)	Two central console	●	●	●	●	●	●	●	●	●
	Seat fabric	PVC	●	●	●	●	–	–	–	–	–
		Imitation of leather	–	–	–	–	○	○	●	●	●
		Fabric	–	–	–	–	●	●	●	●	●
	Driver seat adjustment	Way manual adjustment	●	●	●	●	●	●	●	●	●
	Driver seat adjustment	Way power seat+ventilation and heating gear 3	○	○	○	○	○	○	○	○	○
	Front passenger seat adjustment	Four Way manual seat	●	●	●	●	●	●	●	●	●
	Front passenger seat adjustment	Way power seat+ventilation 3rd gear	○	○	○	○	○	○	○	○	○
	Front headrest type	Two, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second row head restraint type	Two, independent, adjustable up and down	–	–	–	–	–	–	–	–	–
	Second row head restraint type	Three, independent, adjustable up and down	●	●	●	●	●	●	●	●	●
	Second-row safety belt	Full three-point seat belt	●	●	●	●	●	●	●	●	●
	Rear seat back adjustable	The seat cushion can be flipped 4/6	●	●	●	●	●	●	●	●	●
	Interface of child seat	ISOfix	●	●	●	●	●	●	●	●	●
Audio & Connectivity	Inch screen	Bluetooth+digital radio function (DAB)+WIFI module+OBD display, etc	●	●	●	●	–	–	–	–	–
	Audio system	6Pcs (2 high+2 low+2 full frequency)	●	●	●	●	–	–	–	–	–
	Inch screen	Bluetooth+WIFI module+language (Spanish+English)	–	–	–	–	●	●	●	●	●
	Radio	AM+FM	–	–	–	–	●	●	●	●	●
	Mobile phone interconnection	IOS+Android	●	●	●	●	●	●	●	●	●
	Sound system	Four (2 low+2 full frequency)	–	–	–	–	●	●	●	●	●
Safety & Security	Air bag	Driver+assistant driver	●	●	●	●	●	●	●	●	●
		Side air bag	○	○	○	○	○	○	○	○	○
		Side air curtain	○	○	○	○	–	–	–	–	○
	ESC	ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC	●	●	●	●	●	●	●	●	●
	Front radar		○	○	○	○	–	–	–	–	–
	Reversing radar		●	●	●	●	●	●	●	●	●
	Reversing video camera		●	●	●	●	●	●	●	●	●
	Image 540		○	○	○	○	–	–	–	○	○
	Cruise control		●	●	●	●	●	●	●	●	●
	Cross-country cruise control	Creeping mode of motion	–	●	–	●	–	–	–	–	–
	Tank turning around		–	●	–	●	–	–	–	–	–
	Transfer Case	Central differential velocity	–	●	–	●	–	●	●	–	●
	Rear axle differential lock		–	○	–	○	–	○	○	–	○
	Sand Zone Kit		–	○	–	○	○	○	○	○	○
	Reserved retrofit switch	4 Pcs (1 for front engine compartment/1 for indoor roof/1 for chassis/1 under seat)	●	●	●	●	–	–	–	–	–
	BOS brake priority system		●	●	●	●	●	●	●	●	●
	Central control door lock		●	●	●	●	●	●	●	●	●
	Remote door lock		●	●	●	●	●	●	●	●	●
	Child lock	Rear door	●	●	●	●	●	●	●	●	●
	Smart key		●	●	●	●	●	●	●	●	●
	Smart key	Non-sensitive welcome Non-sensitive unlocking	●	●	●	●	–

Core Features

Powerful performance and precise control

The Nissan Renault M9T engine produces 140kW of power and 500N·m of torque.
ZF 8-speed automatic transmission and part-time four-wheel drive system.
Maximum gradeability: 100%; Ground clearance: 235/233mm; Wading depth: 800mm

Enjoy a comfortable driving experience with comprehensive protection.

Rugged, mecha-inspired front fascia; Z-shaped headlights; completely flat second-row floor; 90° rear door opening angle.
The interior features a cutting-edge, technologically advanced aesthetic design.
It is equipped with a 12.8-inch intelligent central control screen.

Economical, efficient, durable and reliable

Economical fuel consumption: 7.9L/100km.
Extra-deep (550mm) and extra-wide (1600mm) pickup truck cargo bed.

Factory-modified, worry-free vehicle inspection.

All models come standard with 265/70R17 AT tires, balancing on-road comfort with strong grip on unpaved roads.
Iron rear bumper enhances rear protection; iron side steps improve side protection and make getting in and out of the vehicle easier.
Electric rear cargo bed step for easy loading and unloading

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get a Quote

We're Ready To Assist You Anytime

Z9 SPECIFICATION

Legend: ● = Standard Equipment O = Optional Equipment — = Not Available

Category	Feature / Specification	Z9 2.0T Gas 8AT 4WD Jinxiang Std. Box	Z9 2.3T Diesel 6MT 4WD Jinxiang Std. Box	Z9 2.3T Diesel 8AT 4WD Jinxiang Std. Box	Z9 2.3T Diesel 8AT 4WD Comfort Std. Box	Z9 2.0T Gas 8AT 4WD Jinxiang Long Box	Z9 2.3T Diesel 6MT 4WD Jinxiang Long Box	Z9 2.3T Diesel 8AT 4WD Jinxiang Long Box	Z9 2.3T Diesel 8AT 4WD Comfort Long Box
Pricing	Market Retail Price (RMB)	156,900	142,900	155,900	159,900	158,900	144,900	157,900	161,900
Powertrain	Transmission	8AT	6MT	8AT	8AT	8AT	6MT	8AT	8AT
	Fuel Type	Gasoline	Diesel	Diesel	Diesel	Gasoline	Diesel	Diesel	Diesel
	Engine Model	4K31TD	M9T-500	M9T-500	M9T-500	4K31TD	M9T-500	M9T-500	M9T-500
	Displacement	2.0T	2.3T	2.3T	2.3T	2.0T	2.3T	2.3T	2.3T
	Valve Train	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC
	Max. Power (kW @ rpm)	190 @ 5600	140 @ 3500	140 @ 3500	140 @ 3500	190 @ 5600	140 @ 3500	140 @ 3500	140 @ 3500
	Max. Torque (N·m @ rpm)	400 @ 1500–4000	450 @ 1500–2500	500 @ 1500–2500	500 @ 1500–2500	400 @ 1500–4000	450 @ 1500–2500	500 @ 1500–2500	500 @ 1500–2500
Dimensions	L × W × H (mm)	5520×1960×1950	5520×1960×1950	5520×1960×1950	5520×1960×1950	5725×1960×1960	5725×1960×1960	5725×1960×1960	5725×1960×1960
	Wheelbase (mm)	3300	3300	3300	3300	3505	3505	3505	3505
	Track (F/R) (mm)	1650	1650	1650	1650	1650	1650	1650	1650
	Cargo Box L×W×H (mm)	1520×1600×550	1520×1600×550	1520×1600×550	1520×1600×550	1760×1600×550	1760×1600×550	1760×1600×550	1760×1600×550
	Min. Turning Radius (m)	6.75	6.75	6.75	6.75	7.07	7.07	7.07	7.07
	Min. Ground Clearance (mm)	235/226	235/230	235/232	235/233	215	215	215	215
	Curb Weight (kg)	2140	2205	2240	2240/2280	2160	2245	2260	2260
	Payload Capacity (kg)	490	490	490	490/450	490	490	490	490
	Approach/Departure Angle (°)	31/26	31/26	31/26	31/26	30/27	30/27	30/27	30/27
	Seating Capacity	5	5	5	5	5	5	5	5
	Fuel Tank (L)	73	73	73	73	73	73	73	73
	Top Speed (km/h)	160	160	160	160	160	160	160	160
	NEDC Fuel Consumption (L/100km)	9.5	7.7	7.9	7.9	9.5	7.7	7.9	7.9
Off-Road	Low-Speed 4WD	●	●	●	●	●	●	●	●
	Transfer Case Center Lock	●	●	●	●	●	●	●	●
	Crawl Mode	●	—	—	●	●	—	—	●
	Tank Turn	●	—	—	●	●	—	—	●
Suspension	Front Suspension	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer	D. Wishbone + Stabilizer
	Rear – Leaf Spring (6 leaves)	●	●	●	O	●	●	●	●
	Rear – 5-Link	O	—	O	●	—	—	—	—
Brakes & Tires	Brake System	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc
	Parking Brake	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold
	Tires	265/70R17 AT	265/70R17 AT	265/70R17 AT	265/70R17 AT	265/70R17 AT	265/70R17 AT	265/70R17 AT	265/70R17 AT
	Wheels	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Steering	Type	Electronic	Hydraulic	Hydraulic	Electronic	Electronic	Hydraulic	Hydraulic	Electronic
Exterior	Roof Rails	O	O	O	O	O	O	O	O
	Roll Bar (Standard + Metal)	●	●	●	O	●	●	●	●
	Side Step (Iron)	●	●	●	●	●	●	●	●
	Rear Bumper (Iron)	●	●	●	●	●	●	●	●
	Electric Tailgate Step	●	●	●	●	●	●	●	●
	Electric Fuel Filler Cap	●	●	●	●	●	●	●	●
	Shark Fin Antenna	—	—	—	●	—	—	—	●
	Rhino Horn Antenna	●	●	●	—	●	●	●	—
	Outer Rope Hooks (4 pcs)	●	●	●	O	●	●	●	●
	Front Tow Hook (1 pc)	●	●	●	●	●	●	●	●
Comfort	Steering Wheel	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction	PU Foam, 2-Way Adj., Multifunction
	Multifunction SW Controls	Cruise + Audio + Bluetooth	Cruise + Audio + Bluetooth	Cruise + Audio + Bluetooth	+ Voice Control	Cruise + Audio + Bluetooth	Cruise + Audio + Bluetooth	Cruise + Audio + Bluetooth	+ Voice Control
	A/C	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter
	Seats	Leatherette	Leatherette	Leatherette	Leatherette	Leatherette	Leatherette	Leatherette	Leatherette
	Driver Seat	6-Way Manual	6-Way Manual	6-Way Manual	6-Way Manual	6-Way Manual	6-Way Manual	6-Way Manual	6-Way Manual
	Front Pass. Seat	4-Way Manual	4-Way Manual	4-Way Manual	4-Way Manual	4-Way Manual	4-Way Manual	4-Way Manual	4-Way Manual
	2nd Row Headrests	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable	2 pcs, independent, height-adjustable
	Rear Seat Cushion Flip	●	●	●	●	●	●	●	●
	Instrument Cluster	Color (3.5″)	Color (3.5″)	Color (3.5″)	Color (10.25″)	Color (3.5″)	Color (3.5″)	Color (3.5″)	Color (10.25″)
	Multi-Screen Linkage	—	—	—	●	—	—	—	●
	Keyless Entry (Driver) + One-Touch Start	●	●	●	●	●	●	●	●
	Power Windows	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch	Driver One-Touch + Anti-Pinch
	12V Outlet (Front)	●	●	●	●	●	●	●	●
	Rain-Sensing Wipers	●	●	●	●	●	●	●	●
	Hood Gas Strut	●	●	●	●	●	●	●	●
	Tailgate Soft Drop	●	●	●	●	●	●	●	●
Glass	Windshield	Green + UV	Green + UV	Green + UV	Green + UV	Green + UV	Green + UV	Green + UV	Green + UV
	Rear Window	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass
	Front Door Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass
	Rear Door Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass	Green Glass
Mirrors	Outside Mirrors	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp	Elec. Adj. + Fold + Heated + Puddle Lamp
	Inside Mirror	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare
Lighting	LED Headlights	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode	Auto On/Off + Delay + Height Adj. + Ultra-Near Mode
	Front Fog + Seq. Turn Signals	O	O	O	O	O	O	O	O
	Rear Fog + Backup Light	●	●	●	●	●	●	●	●
	LED DRLs (integrated)	●	●	●	●	●	●	●	●
	LED Rear Combo Lights	●	●	●	●	●	●	●	●
	LED High-Mount Brake Light	●	●	●	●	●	●	●	●
Safety & Driver Assist	Front Airbags (D + P)	●	●	●	●	●	●	●	●
	ESC Suite (ABS, EBD, HBA, HHC, VDC, TCS, HAZ, RMI, HDC)	●	●	●	●	●	●	●	●
	Cruise Control	●	●	●	●	●	●	●	●
	Tire Pressure Monitoring	●	●	●	●	●	●	●	●
	Reverse Radar	●	●	●	●	●	●	●	●
	540° Camera System (HD + Transparent Chassis)	●	●	●	●	●	●	●	●
	Engine Front Shield (Resin)	●	●	●	●	●	●	●	●
	Engine Underbody Guard (Metal)	●	—	—	●	●	—	—	●
	Child Safety Locks	●	●	●	●	●	●	●	●
	Assist Grab Handles	●	●	●	●	●	●	●	●
Infotainment	Display	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)	12.8″ (BT + WiFi + OBD)
	Voice Control	—	—	—	●	—	—	—	●
	Phone Connectivity (Wireless)	iOS + Android	iOS + Android	iOS + Android	—	iOS + Android	iOS + Android	iOS + Android	—
	Connected Car (Remote Start/Control, Bluetooth Key)	—	—	—	●	—	—	—	●
	Built-in Apps (Nav, Music, Audio, Video)	—	—	—	●	—	—	—	●
	Speakers	4	4	4	4	4	4	4	4
Other	Tool Kit	●	●	●	●	●	●	●	●
	Spray-On Bed Liner	●	●	●	●	●	●	●	●
	Inner Rope Hooks (4 pcs)	●	●	●	●	●	●	●	●

360°VR

360°

IF YOU NEED OTHER COLORS,YOU CAN CONSULT US

Core Features

More cold-resistant

High-capacity AGM battery specifically designed for extremely cold environments.
Starts within 2 seconds at -40 degrees Celsius.
Strong stability during continuous starting.

Safer

The only standard 540° surround view camera in its class.
Potholes, narrow roads, and icy/snowy surfaces are clearly visible.
ESC+AT tires provide stronger grip and more stable handling.

Warmer.

Industry-exclusive heated front and rear windshields + exterior mirrors.
Quickly removes frost and snow to restore clear visibility.
Dual heating for the steering wheel and seats provides instant warmth.

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get a Quote

We're Ready To Assist You Anytime

Z9 SPECIFICATION

The following configuration information for the Z9 Cold Region Edition is for your reference. Legend: ● = Standard Equipment O = Optional Equipment — = Not Available

Category	Feature / Specification	Z9 2.3T Manual Diesel 2WD Jinxiang (Std. Box)	Z9 2.3T Manual Diesel 4WD Jinxiang (Std. Box)	Z9 2.3T Auto Diesel 2WD Jinxiang (Std. Box)	Z9 2.3T Auto Diesel 4WD Jinxiang (Std. Box)
Pricing & Drive	Drive Type	2WD	4WD	2WD	4WD
	Transmission	6MT	6MT	8AT	8AT
Emissions	Emission Standard	China 6b + RDE	China 6b + RDE	China 6b + RDE	China 6b + RDE
Dimensions & Weight	L × W × H (mm)	5520 × 1960 × 1950	5520 × 1960 × 1950	5520 × 1960 × 1950	5520 × 1960 × 1950
	Wheelbase (mm)	3300	3300	3300	3300
	Track (F/R) (mm)	1650	1650	1650	1650
	Cargo Box L × W × H (mm)	1520 × 1600 × 550	1520 × 1600 × 550	1520 × 1600 × 550	1520 × 1600 × 550
	Min. Turning Radius (m)	6.75	6.75	6.75	6.75
	Min. Ground Clearance (mm)	235 / 226	235 / 226	235 / 226	235 / 226
	Curb Weight (kg)	2075	2205	2115	2240
	Payload Capacity (kg)	490	490	490	490
	Approach/Departure Angle (°)	31 / 26	31 / 26	31 / 26	31 / 26
	Seating Capacity	5	5	5	5
	Fuel Tank Capacity (L)	73	73	73	73
	Top Speed (km/h)	170	170	170	170
	NEDC Fuel Consumption (L/100km)	7.4	7.7	7.7	7.9
Engine	Model	M9T-500	M9T-500	M9T-500	M9T-500
	Displacement	2.3T	2.3T	2.3T	2.3T
	Valve Train	DOHC	DOHC	DOHC	DOHC
	Max. Power (kW @ rpm)	140 @ 3500	140 @ 3500	140 @ 3500	140 @ 3500
	Max. Torque (N·m @ rpm)	450 @ 1500–2500	450 @ 1500–2500	500 @ 1500–2500	500 @ 1500–2500
Drivetrain & Chassis	Brake System	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc
	Parking Brake	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold
	Drive Mode	Rear-Wheel Drive	Part-time 4WD	Rear-Wheel Drive	Part-time 4WD
	Low-Speed 4WD	—	●	—	●
	Transfer Case Center Lock	—	●	—	●
	Front Suspension	Double Wishbone + Stabilizer Bar	Double Wishbone + Stabilizer Bar	Double Wishbone + Stabilizer Bar	Double Wishbone + Stabilizer Bar
	Rear Suspension	Leaf Spring (6 leaves)	Leaf Spring (6 leaves)	Leaf Spring (6 leaves)	Leaf Spring (6 leaves)
	Tires	265/70R17	265/70R17	265/70R17	265/70R17
	Wheels	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Off-Road & Driver Assist	ESC Suite (ABS, EBD, HBA, HHC, VDC, TCS, HAZ, RMI, HDC)	●	●	●	●
	Crawl Mode	—	—	—	●
	Tank Turn	—	—	—	●
	Cruise Control	●	●	●	●
	Tire Pressure Monitoring	●	●	●	●
Exterior	Side Step (Fixed)	●	●	●	●
	Roof Rails	O	O	O	O
	Roll Bar (Standard + Metal)	●	●	●	●
	Tailgate Soft Drop	●	●	●	●
	Electric Tailgate Step (w/ central lock)	O	O	O	O
	Outer Rope Hooks (4 pcs)	●	●	●	●
	Front Tow Hook (1 pc)	●	●	●	●
Interior & Convenience	Steering Wheel Material	Foam	Foam	Foam	Foam
	Steering Wheel Adjustment	2-Way (Multifunction)	2-Way (Multifunction)	2-Way (Multifunction)	2-Way (Multifunction)
	Seats	Leatherette	Leatherette	Leatherette	Leatherette
	Driver Seat	6-Way Manual	6-Way Manual	6-Way Manual	6-Way Manual
	Front Passenger Seat	4-Way Manual	4-Way Manual	4-Way Manual	4-Way Manual
	2nd Row Headrests	3 pcs, independent, height-adjustable	3 pcs, independent, height-adjustable	3 pcs, independent, height-adjustable	3 pcs, independent, height-adjustable
	Rear Seat Cushion Flip	●	●	●	●
	Instrument Cluster	Color (3.5-inch)	Color (3.5-inch)	Color (3.5-inch)	Color (3.5-inch)
	Keyless Entry (Driver Side) + One-Touch Start	●	●	●	●
	A/C	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter
	Power Windows	Front + Driver One-Touch Up/Down + Anti-Pinch	Front + Driver One-Touch Up/Down + Anti-Pinch	Front + Driver One-Touch Up/Down + Anti-Pinch	Front + Driver One-Touch Up/Down + Anti-Pinch
	12V Power Outlet (Front)	●	●	●	●
	Rain-Sensing Wipers	●	●	●	●
	Hood Gas Strut	●	●	●	●
Glass & Mirrors	Windshield	Green Glass + UV Protection	Green Glass + UV Protection	Green Glass + UV Protection	Green Glass + UV Protection
	Rear Window	Green Glass + Defrost	Green Glass + Defrost	Green Glass + Defrost	Green Glass + Defrost
	Door Glass	Green Glass	Green Glass	Green Glass	Green Glass
	Outside Mirrors	Body Color + LED Turn Signal (Electric Adjust)	Body Color + LED Turn Signal (Electric Adjust)	Body Color + LED Turn Signal (Electric Adjust)	Body Color + LED Turn Signal (Electric Adjust)
	Inside Mirror	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare	Manual Anti-Glare
Lighting	LED Headlights	Auto On/Off + Delay-Off + Height Adjust + Ultra-Near Mode	Auto On/Off + Delay-Off + Height Adjust + Ultra-Near Mode	Auto On/Off + Delay-Off + Height Adjust + Ultra-Near Mode	Auto On/Off + Delay-Off + Height Adjust + Ultra-Near Mode
	Front Fog Lights + Sequential Turn Signals + Welcome Light	O	O	O	O
	Rear Fog Light + Backup Light	●	●	●	●
	LED DRLs (integrated)	●	●	●	●
	LED Rear Combination Lights	●	●	●	●
	LED High-Mount Brake Light + Cargo Light	●	●	●	●
Safety & Security	Front Airbags (Driver + Passenger)	●	●	●	●
	Front Radar	—	O	—	O
	Reverse Radar	●	●	●	●
	Reverse Camera	●	●	●	●
	540° Camera System (HD + Transparent Chassis)	O	O	O	O
	Auto Door Lock Return Function	●	●	●	●
	Child Safety Locks	●	●	●	●
	Assist Grab Handles (Driver & Passenger)	●	●	●	●
	Engine Front Shield	Resin	Resin	Resin	Metal
Infotainment	Multimedia Display	12.8″ (Bluetooth + WiFi + OBD)	12.8″ (Bluetooth + WiFi + OBD)	12.8″ (Bluetooth + WiFi + OBD)	12.8″ (Bluetooth + WiFi + OBD)
	Phone Connectivity	iOS + Android	iOS + Android	iOS + Android	iOS + Android
	Speakers	4	4	4	4
Cold Region Packages (Optional)	Warm & Easy Package	O	O	O	O
	— AGM Battery	O	O	O	O
	— Front Seat Heating	O	O	O	O
	— Heated Steering Wheel	O	O	O	O
	Hardcore Protection Package	O	O	O	O
	— AGM Battery	O	O	O	O
	— Heated Windshield	O	O	O	O
	— Heated Outside Mirrors (Fold + Puddle Lamp)	O	O	O	O
	— Front Seat Heating	O	O	O	O
	— Heated Steering Wheel	O	O	O	O
	— 540° Camera System	O	O	O	O
	AT Tire	265/70R17 (O)	265/70R17 (O)	265/70R17 (O)	265/70R17 (O)
Other	Tool Kit	●	●	●	●
	Spray-On Bed Liner	●	●	●	●
	Inner Rope Hooks (4 pcs)	●	●	●	●

Core Features

Powerful performance and superior handling

Nissan Renault M9T engine: 140kW power, 500N·m torque
ZF 8AT transmission and part-time four-wheel drive system
Frame: 97% high-strength steel, longitudinal beam section height: 190mm, 6-leaf springs

Driving comfort and ultimate safety

A robust and sturdy body measuring 5520mm × 1960mm × 1950mm
Nissan's Zone Body technology is standard across the entire vehicle lineup, featuring EPB+AUTOHOLD.
The second row features a completely flat floor, and the rear doors open to a 90° angle.

Comfortable Driving Experience & Ultimate Safety

5520mm×1960mm×1950mm Robust and Powerful Body
Flat Second-Row Floor, 90° Rear Door Opening Angle
Nissan ZoneBody Technology, EPB+AUTOHOLD Standard Across All Models

Intelligent Cockpit, Comfortable and Luxurious Experience

Newly Upgraded Passenger-Friendly Soft-Packed Dashboard
Electronic Power Steering, 540° Panoramic View Camera
10-inch LCD Instrument Cluster, 12.8-inch Central Control Screen

DETAIL DISPLAY

A newly designed luxury cabin, featuring upgraded sports seats and steering wheel for spirited driving.

Get a Quote

We're Ready To Assist You Anytime

Z9 SPECIFICATION

The following is a list of all configuration details for the 2026 Z9 model for your reference. Legend: ● = Standard / Included O = Optional (Dealer- or factory-installed option) — = Not Available

Category	Feature / Specification	Z9 2.0T Gasoline 4WD Comfort (Standard Box)	Z9 2.3T Diesel 4WD Comfort (Standard Box)	Z9 2.3T Diesel 4WD Comfort (Long Box)
Pricing	Market Retail Price (RMB)	150,900	149,900	151,900
Dimensions & Weight	Length × Width × Height (mm)	5520 × 1960 × 1950	5520 × 1960 × 1950	5725 × 1960 × 1960
	Wheelbase (mm)	3300	3300	3505
	Cargo Box (L × W × H) (mm)	1520 × 1600 × 550	1520 × 1600 × 550	1760 × 1600 × 550
	Min. Turning Radius (m)	6.75	6.75	7.07
	Min. Ground Clearance (mm)	235 / 226	235 / 233	215
	Curb Weight (kg)	2140 / 2190	2240 / 2280	2260
	Payload Capacity (kg)	490 / 440	490 / 450	490
	Approach / Departure Angle (°)	31 / 26	31 / 26	30 / 27
	Fuel Tank Capacity (L)	73	73	73
Engine	Model	4K31TD (Gasoline)	M9T-500 (Diesel)	M9T-500 (Diesel)
	Displacement	2.0T	2.3T	2.3T
	Max. Power (kW @ rpm)	190 @ 5600	140 @ 3500	140 @ 3500
	Max. Torque (N·m @ rpm)	400 @ 1500–4000	500 @ 1500–2500	500 @ 1500–2500
	NEDC Fuel Consumption (L/100km)	9.5	7.9	7.9
	Top Speed (km/h)	160	160	160
Chassis & Suspension	Front Suspension	Double Wishbone + Stabilizer Bar	Double Wishbone + Stabilizer Bar	Double Wishbone + Stabilizer Bar
	Rear Suspension	5-Link	5-Link	Leaf Spring (6 leaves)
	Brake System	4-Wheel Disc	4-Wheel Disc	4-Wheel Disc
	Parking Brake	Electronic + Autohold	Electronic + Autohold	Electronic + Autohold
	Tires	265/70R17	265/70R17	265/70R17
	Wheels	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Off-Road Capability	Low-Speed 4WD	●	●	●
	Center Diff Lock (Transfer Case)	●	●	●
	Crawl Mode	●	●	●
	Tank Turn	●	●	●
	Hill Descent Control (HDC)	●	●	●
	Hill-Start Assist (HHC)	●	●	●
Exterior	Side Step	Fixed	Fixed	Fixed
	Roof Rails	O	O	O
	Roll Bar	O	O	● (Standard + Metal)
	Tailgate Soft Drop	●	●	●
	Electric Tailgate Step	O	O	O
	Outer Rope Hooks (4 pcs)	O	O	●
	Front Tow Hook (1 pc)	●	●	●
Interior & Comfort	Seats	Leatherette	Leatherette	Leatherette
	Driver Seat Adjustment	6-Way Manual	6-Way Manual	6-Way Manual
	Steering Wheel	Multifunction (PU Foam)	Multifunction (PU Foam)	Multifunction (PU Foam)
	Air Conditioning	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter	Automatic + PM2.5 Filter
	Instrument Cluster	10.25″ Color Display	10.25″ Color Display	10.25″ Color Display
	Multi-Screen Linkage	●	●	●
	Keyless Entry + One-Touch Start	●	●	●
	12V Power Outlet (Front)	●	●	●
Safety & Driver Assist	Airbags (Front)	Driver & Passenger	Driver & Passenger	Driver & Passenger
	ESC Suite (ABS, EBD, VDC, TCS, RMI, HAZ)	●	●	●
	540° Camera System (HD + Transparent Chassis)	●	●	●
	Reverse Radar	●	●	●
	Tire Pressure Monitoring	●	●	●
	Cruise Control	●	●	●
	Child Safety Locks	●	●	●
Infotainment	Display Size	12.8″	12.8″	12.8″
	Connectivity	Bluetooth + WiFi	Bluetooth + WiFi	Bluetooth + WiFi
	Voice Control	●	●	●
	Connected Car (Remote Start / Control)	●	●	●
	Built-in Navigation & Apps	●	●	●
	Speakers	4	4	4

Nissan New Energy Pickup

Z9GE PHEV Touring Edition

More Comfortable Travel Living

Worry-Free Quality

Factory-Approved Legal Modification

Over 10,000 km Full-Vehicle Durability Testing

Worry-Free After-Sales Support

More Comfortable Mobile Living

Electric Pop-Up Roof Tent with Dual Mode System

One-Touch Stop & Stay | Weather & Insect Protection

1.9 m² Spacious Living Space

Everyday Practicality Made Easier

Subtle SUV Styling for Urban Commuting

Rear Lift-Up Window for Easy Access

High-Mounted Brake Light for Safety

More Versatile Scenarios

Modular Magic Box System

Instant Camping & Fishing Mode Switch

All-Purpose Vehicle-to-Home Space

DETAIL DISPLAY

Get In Touch

Z9GE PHEV Touring Edition SPECIFICATION

True off-road capability, born to conquer.

NISSAN Z9 GTS

Global Flagship Off-Road Pickup

Rugged Off-Road Design. Factory-Built at Its Peak.

Striking Futuristic Presence

Equipped with Off-Road Fender Flares, All-Terrain Wheels, and a Full-Width LED Front Light.

Off-Road Fenders | Rugged Wheels | Full-Width LED Headlight

Ultimate Comfort & Safety. Go Beyond Every Terrain with Ease.

Spacious Comfort

Extreme Safety

Flat Second-Row Floor. 90° Wide-Opening Rear Doors.

Engineered by Nissan Zone Body Technology.

Off-Road Performance. Conquer All Terrains.

Off-Road Grade Mobility Performance

31° Approach Angle | 26° Departure Angle

100% Maximum Gradeability | 235 mm Ground Clearance

DETAIL DISPLAY

Get In Touch

Z9 GTS SPECIFICATION

Zhengzhou Nissan Pickup Family

Z9GE PHEV DroneVersion

Real Range. Real Power Station.

360°VR

Worry-Free Economy

Worry-Free Economy

Worry-Free Supply & Support

Optional Factory-Installed 1.5 m² Mobile Landing Pad

Nearly 600 L OEM Water Tank

Seamless Compatibility for Multi-Vehicle Parking and Deployment

Worry-Free Supply

Optional Factory 1.5 m² Mobile Landing Platform

Seamless Multi-Vehicle Compatibility for Hassle-Free Parking

Smoother Supply, Higher Efficiency

Zero Waiting for Charging

Worry-Free Driving

24 kW Ultra-Fast Charging

Triple Power Sources: Fuel / Electric / Hybrid

Minimum Ground Clearance: 232 mm

Part-Time Four-Wheel Drive System

DETAIL DISPLAY

Get In Touch

Z9GE PHEV DroneVersion SPECIFICATION

Nissan New Energy Pickup

NISSAN Z9GE PHEV

Worry-Free Charging

360°VR

Next-Generation Hybrid Power

Ultra-Strong Powertrain Performance

High Value & High Efficiency

Three Power Sources | 800 N·m Combined Torque

0–100 km/h in 7.6 s | Over 3-Ton Towing Capacity

135 km Pure Electric Range

A New Generation of Smart Technology

Intelligent Cockpit

Intelligent Interaction

Intelligent Infotainment System

Power Tailgate + Electric Cargo Cover + Power Side Steps

Four Intelligent Modes for Every Scenario: Camping, Rest, Protection & Car Wash
