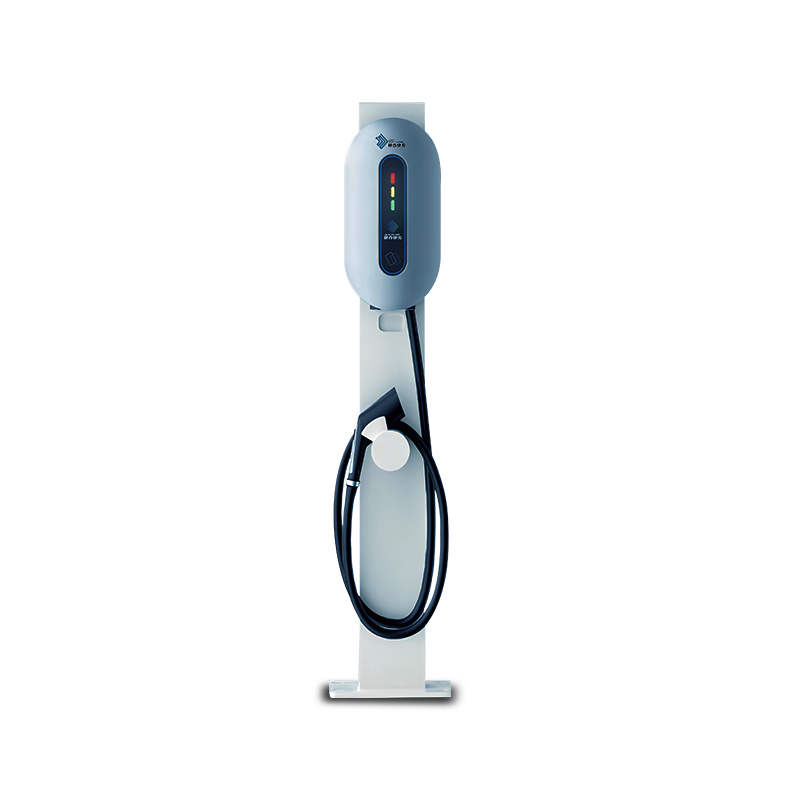

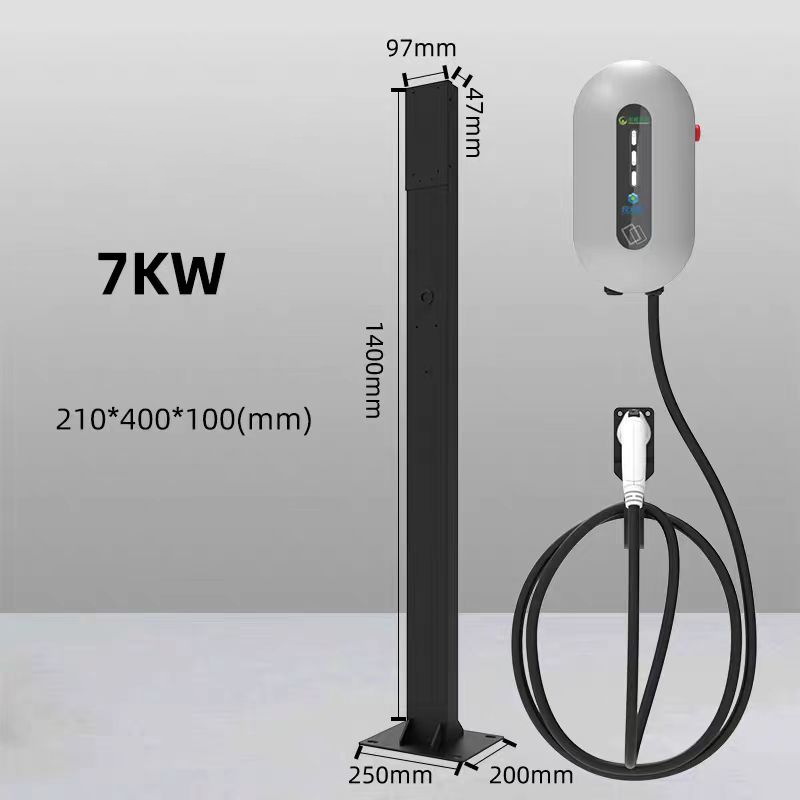

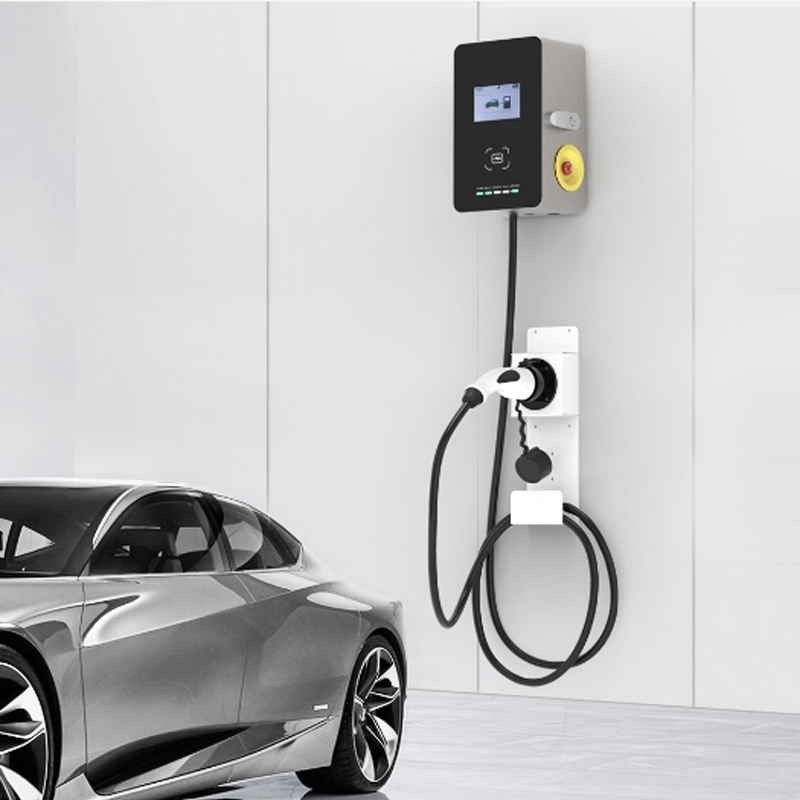

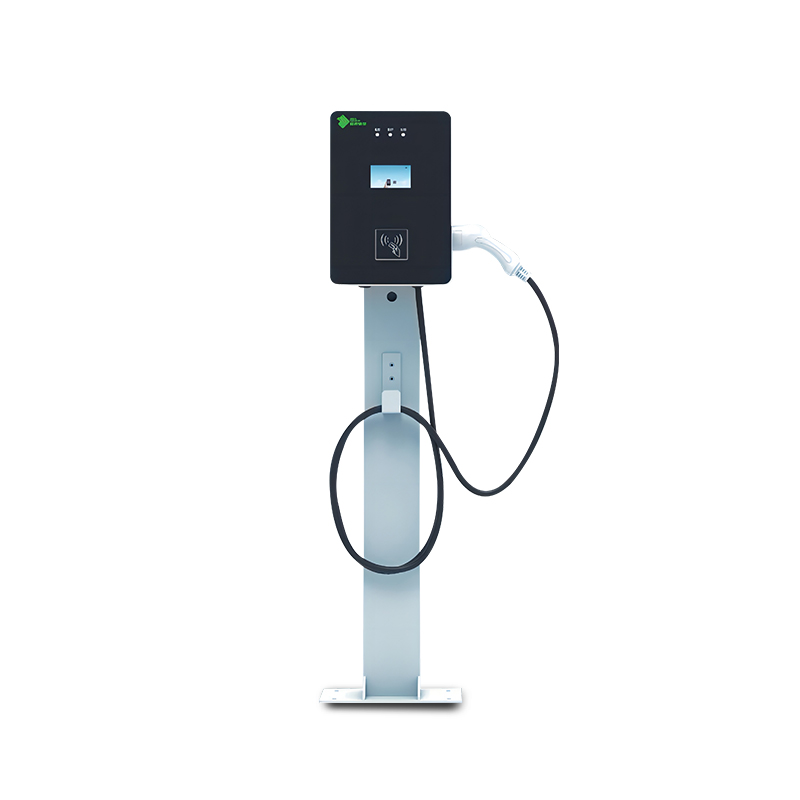

A single-phase AC charging pile
Product Introduction
The single-phase AC charging pile is Hesucar’s new generation of lightweight new energy vehicle DC constant power fast charging pile. The product is simple to operate, safe and reliable, occupies a small area, and has good dust and water resistance. The protection level reaches |P54, and can be used for home charging and corporate operation charging.
Product Features
- Lightweight
- Superior performance
- Multiple installation methods
- Safe and intelligent
- High protection level
- Smart and convenient application
Product Specifications
| Product Model | LHKCEAC1-7KW/1B | LHKCEAC1-7KW/1B | LHKCEAC1-14KW/2B | |
| Basic Parameters | Product Name | 7KW Single phase AC home charging pile | 7KW Operate single-phase AC charging pile | 14KW Operate single-phase AC charging pile |
| Design Scenarios | Private Charging | Public Operations | Public Operations | |
| Maximum charging power | 7KW | 2*7KW | ||
| Number of charging guns | 1 | 1 | 2 | |
| Cable Length | 5m | |||

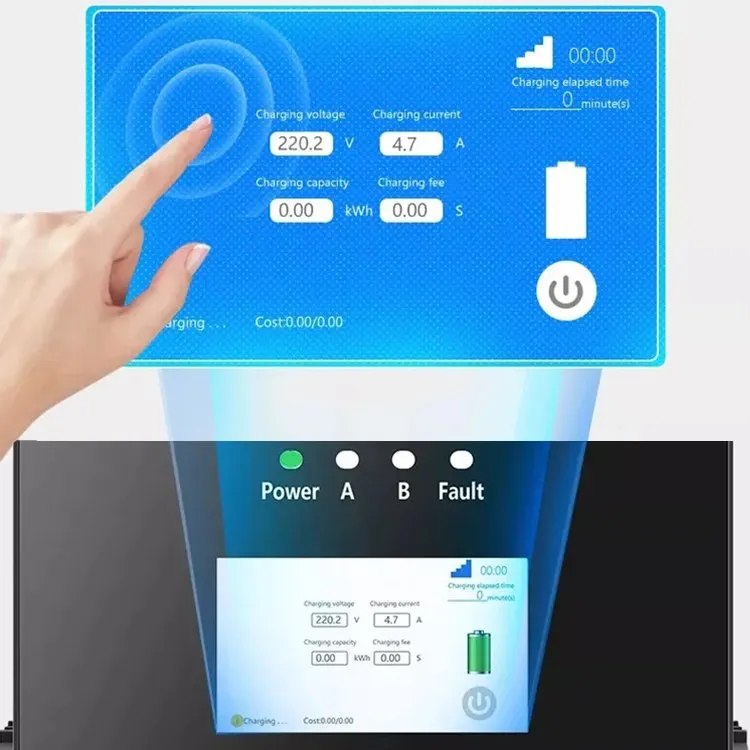

| Appear-ance Structure | Display Screen | 4.3 inch LCD | 4.3 inch LCD | 4.3 inch LCD |
| Housing Material | Plastic body, tempered glass panel | |||
| Overalldimensions | 190mmx100mmx353mm(*W*H) | 1200mmx200mmx400mm | ||
| Equipmentweight | <5kg | <6kg | <25kg | |
| AC input | Input Voltage | 220V +20% VAC | ||
| Iinput Frequency | 45~65 Hz | |||
| Input Phase | single phase, P+N+PE | |||
| AC Output | Output Voltages | 220VAC | ||
| Output Current | 32A | 2*32A | ||
| Standby Power Consumption | <3W | <10w | ||
| Protection Levels | Protection Levels | 1p65 | ||
| Product Model | LHKCEAC1-7KW/1B | LHKCEAC1-7KW/1B | |
| Basic Parameters | Product Name | 7KW Single phase AC home charging pile | 7KW Operate single-phase AC charging pile |
| Design Scenarios | Private Charging | Public Operations | |
| Maximum charging power | 7KW | ||
| Number of charging guns | 1 | 1 | |
| Cable Length | 5m | ||
| Appear-ance Structure | Display Screen | 4.3 inch LCD | 4.3 inch LCD |
| Shell Color | Blue red gray green yellow pink | ||
| Overalldimensions | 395mmx205mmx101mm(*W*H) | ||
| Equipmentweight | 4kg | 4kg | |
| AC input | Input Voltage | 220V +20% VAC | |
| Iinput Frequency | 45~65 Hz | ||
| Input Phase | single phase, P+N+PE | ||
| AC Output | Output Voltages | 220VAC | |
| Output Current | 32A | ||
| Standby Power Consumption | <3W | ||
| Protection Levels | Protection Levels | 1p65 | |

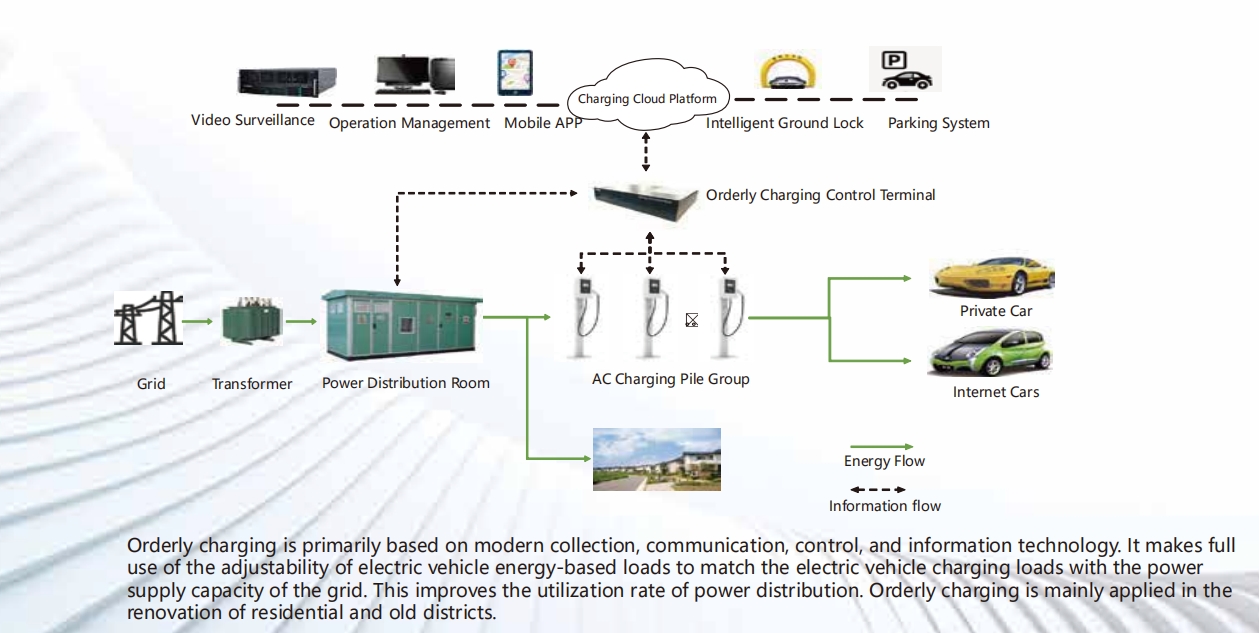

Product Solutions
USER DEMAND
- Willing to invest in charging station construction
- Hope to upgrade existing charging station equipment
- Hope to provide charging supporting service facilities for residential buildings
- Have customer channels and hope to become an agent to sell charging piles
- Have a station with charging piles, but no charging management platform
- Hope to improve the operation of existing charging stations and increase revenue
- Have site resources and hope to build a station
- Have power resources and hope to build a station
SOLUTION
- Provide various types of charging piles to meet the needs of different charging scenarios
- Provide a complete dealer agency policy
- Provide flexible charging pile sales financial service solutions
- Charging platform access services, shared platform users
- Flexible settlement services
- Customized solutions (site assessment, investment return calculation feasibility study report, etc.)
- Professional operation and maintenance team services

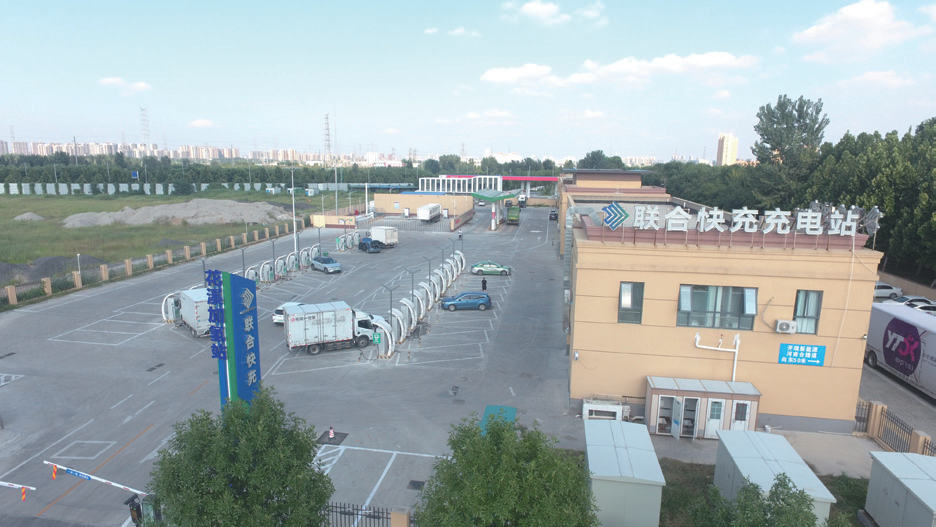

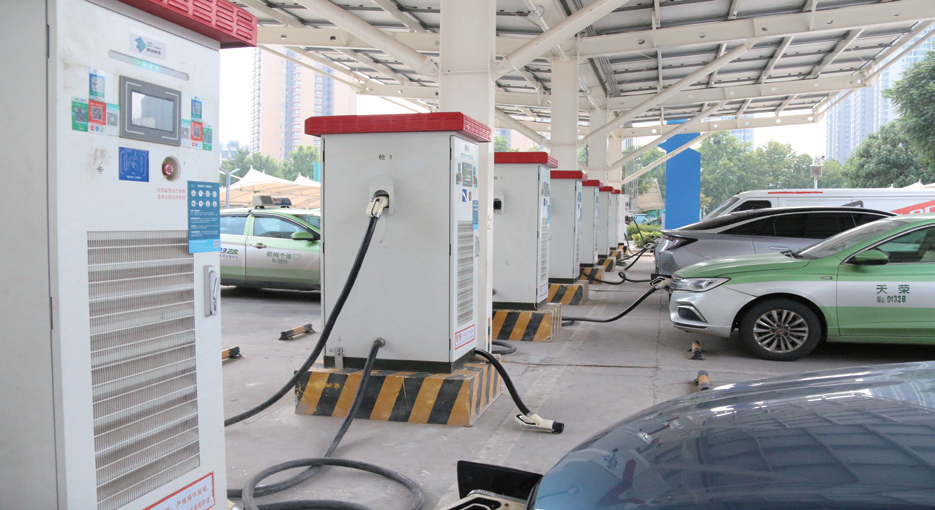

Dedicated fast charging station
Research and developmentintroduction
Microgrid
A vital part of smart grids, microgrids operate reliably in both off-grid and grid-connected modes, enabling intelligent interaction among distributed generation, energy storage, and charging facilities. With advanced energy management systems, they ensure system stability, optimize energy usage, and minimize losses while supporting the closed-loop utilization of renewable energy, contributing to carbon neutrality.
EMS
Serving as the microgrid’s central control, EMS manages data, monitors, controls, and optimizes energy storage system operations efficiently. It adjusts power and voltage parameters to meet load demands, coordinates with the main grid, and reduces energy consumption and system losses. EMS also facilitates islanding operation and reclosing strategies, ensuring system reliability during faults.
EMEWS
This system monitors microgrid operations in real-time, including photovoltaic, energy storage, and charging facilities, enhancing operational efficiency through data analysis and intelligent warnings. Equipped with battery management and communication interfaces, it promptly identifies issues, supports integrated energy station scheduling, and provides data for public safety warnings.

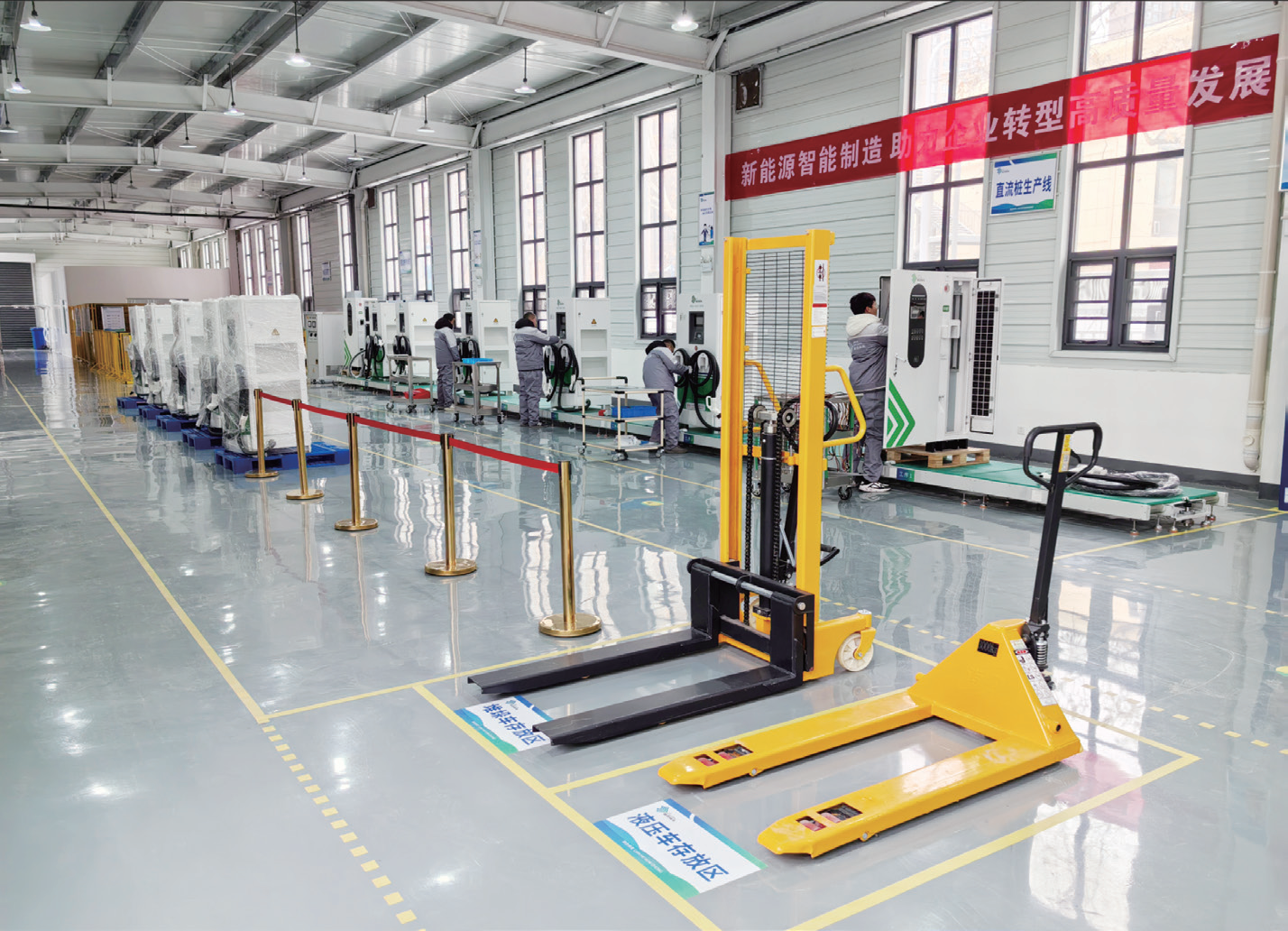

CHARGING PILE MANUFACTURIN
Raw materials
Charging pile shell, circuit board, battery, motor, sensors, etc.
Assembly Production
Assemble the various components according to the design drawings to ensure that the charging pile meets the standard electrical and mechanical performance.

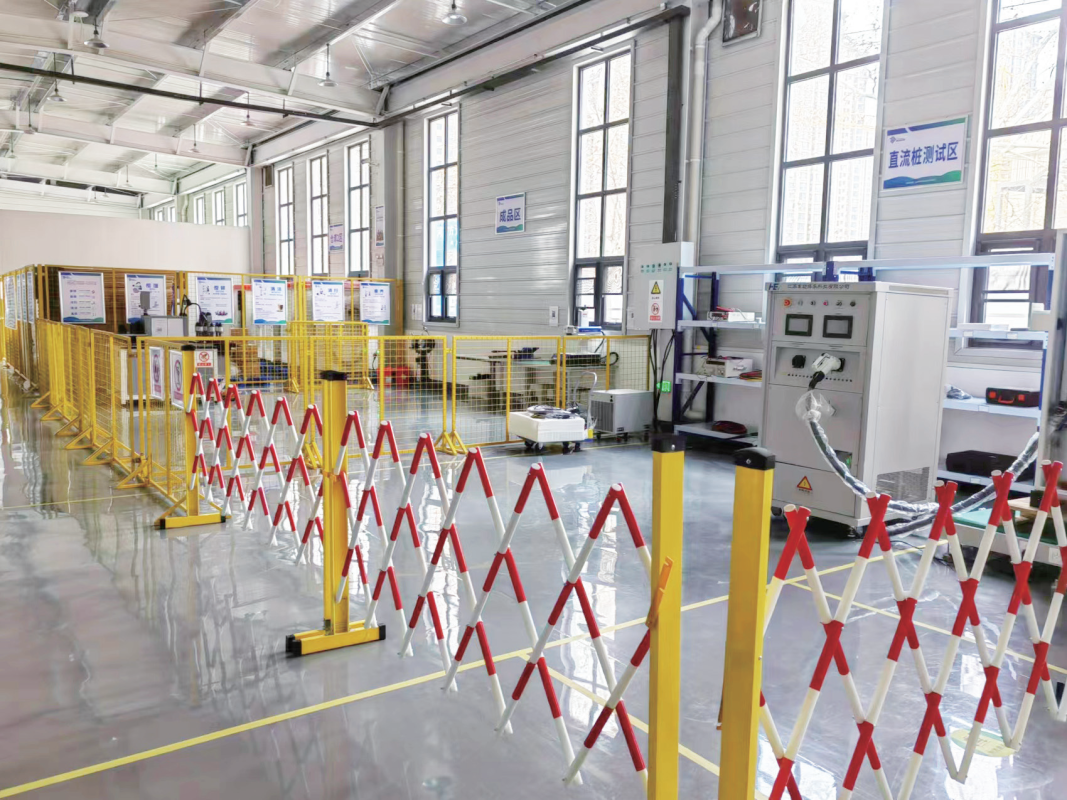

Testing and Debugging
After assembly, production personnel must conduct testing and debugging on the charging pile to ensure performance meets standards. This involves checks on appearance, insulation performance, electrical performance, and road testing to ensure stable performance in various environments.

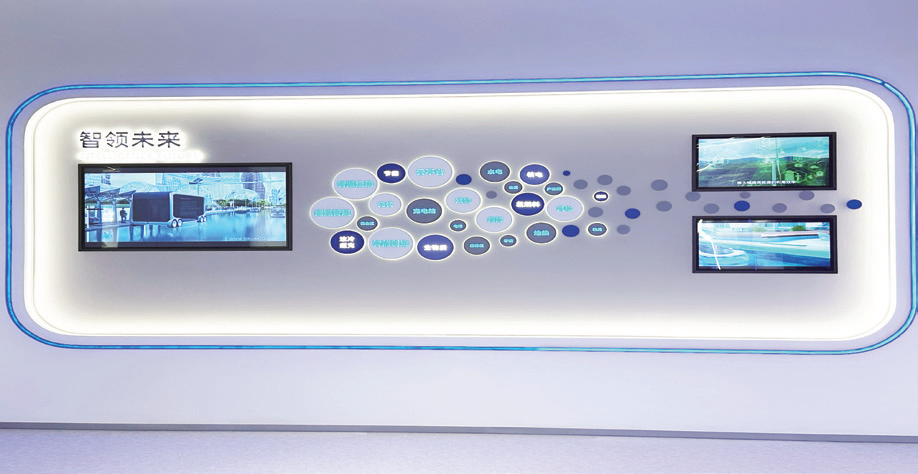

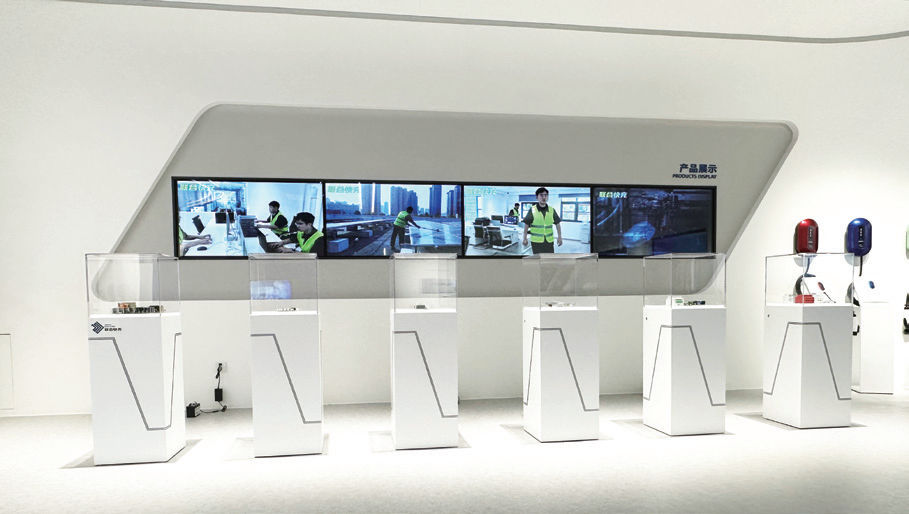

EXHIBITION HAL INTRODUCTION

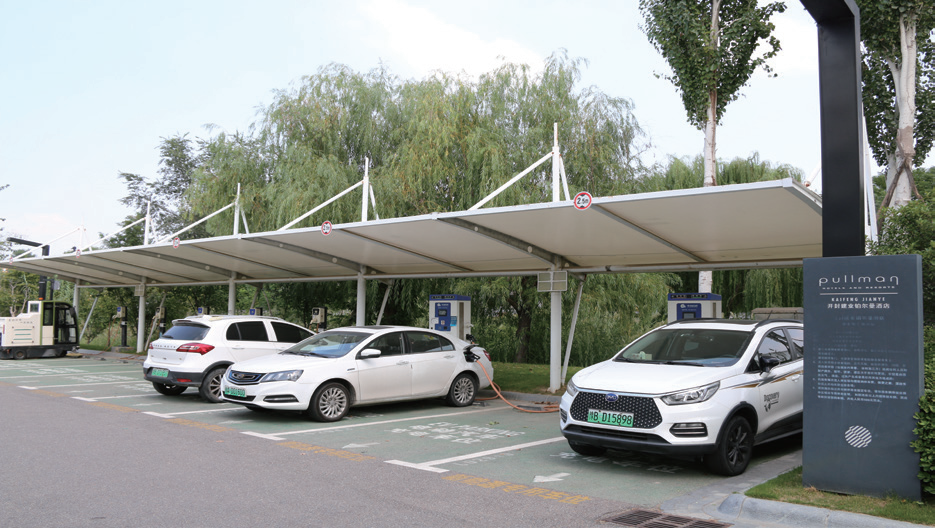

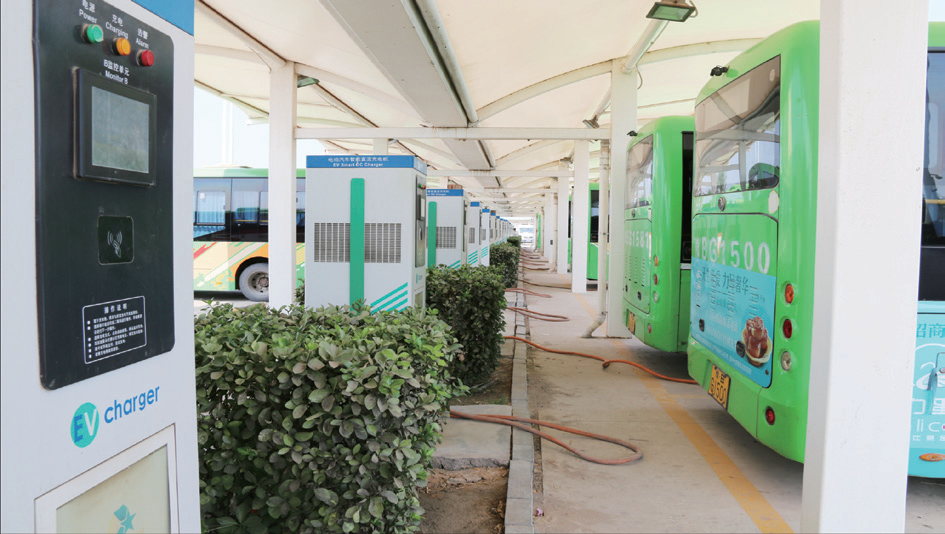

APPLICATION SCENARIOS
