Split high power charging system
Introduction of Product

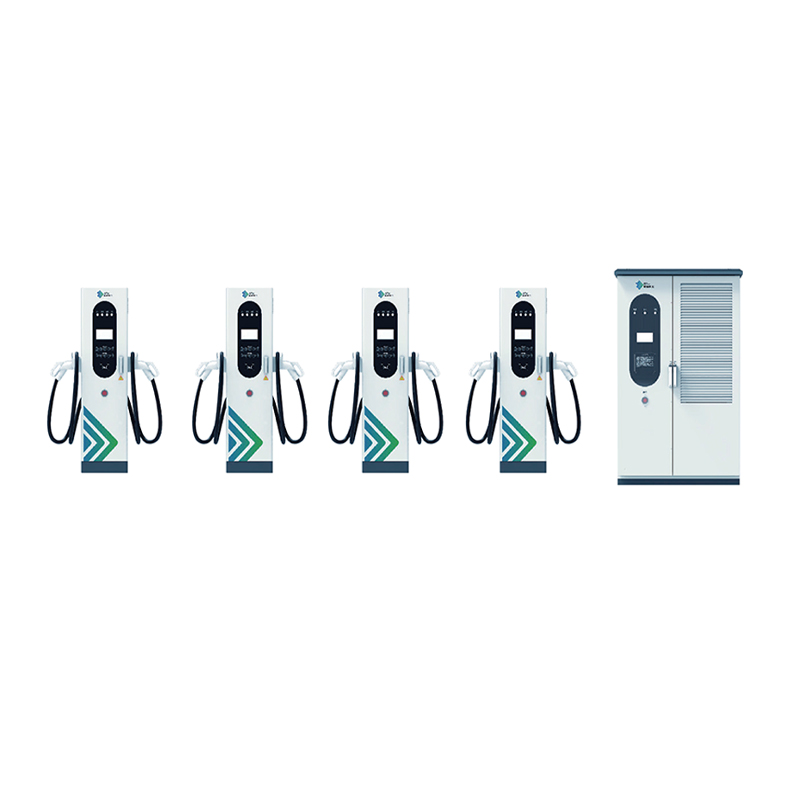

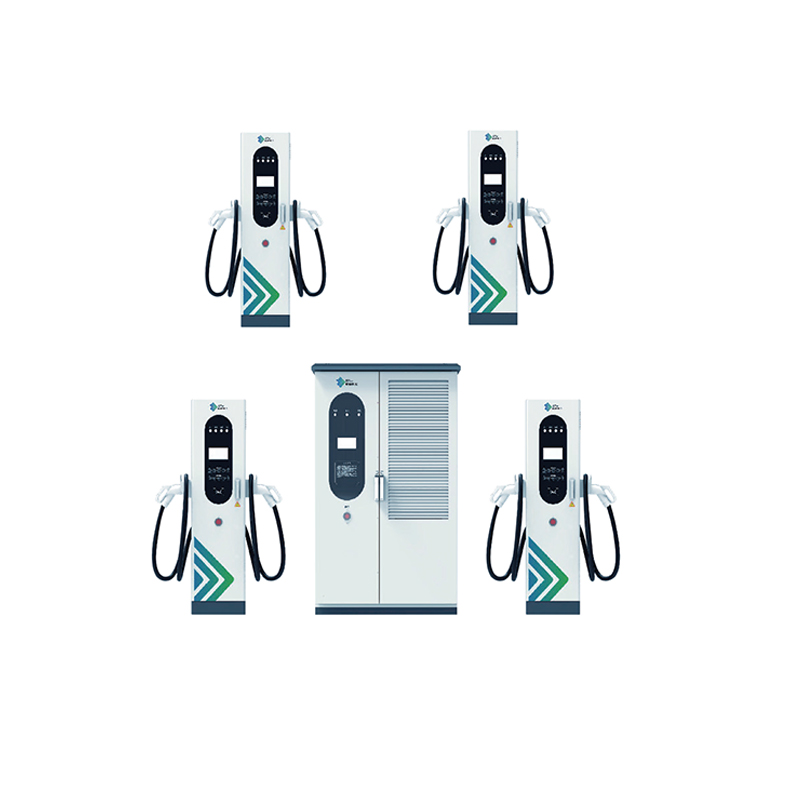

LHKCEDC2-480KW/2L/GB-10 is a split-type high-power charging system designed by United Fast Charge for high-power charging stations. The system features one power cabinet with four dual-gun charging terminals, totaling 8 output channels. With a rated power of 480KW and built-in isolated airflow channel encapsulation charging modules, it ensures high reliability. Each terminal is equipped with standard 250A output, with a maximum single-gun output of 180KW. Intelligent power distribution between terminals is achieved through CoolRing technology, enhancing charging station efficiency in terms of both vehicle capacity and power utilization. The system is designed with IP54 high protection, suitable for various application scenarios.
Product Features:
- Adjustable Power: The power is adjustable to meet different charging requirements.
- Modular Design: The charging power unit adopts a modular design, enabling flexible expansion.
- Flexible Charging: The power output of each charging gun can be dynamically allocated according to the vehicle’s power demand, allowing for flexible power scheduling.
- Compliance with International Standards: Excellent compatibility and adaptability, with optional BMS auxiliary power supply and 12V/24V compatibility.
- Wide Voltage Range: Supports DC charging outputs from 150V to 1000V, and constant power charging outputs from 300V to 1000V, suitable for charging various types of passenger and large vehicles.
- Stable and Reliable: Complete configuration of positive and negative busbar DC contactors, fuses, emergency stop protection switch input surge protectors, leakage protection switches, grounding, and insulation detection monitoring safety protection devices, equipped with multiple protection functions and logic in both software and hardware.
- No Need for Adjustment: User-friendly charging without the need for adjustment, already matched with 99.6% of vehicle manufacturers’ vehicles.
This charging pile is suitable for fast charging of new energy vehicles, providing users with convenient and efficient charging services, and is an advanced choice for the next generation of new energy vehicle charging equipment.
Charging host specifications
| Basic Information | Product model | LHKCEDC2-360KW/2L/GB-10 | LHKCEDC2-480KW/2L/GB-10 |
| Main cabinet size | W1200mm x D750mm x H1980mm | ||
| Terminal cabinet size | 7KWW430mm x D201mm x H1600mm | ||
| Installation method | Floor installation (supports board transportation) | ||
| System efficiency | Maximum efficiency 95.5% | ||
| Rated power | 360KW | 480KW | |
| Heat dissipation method | Air cooling | ||
| Protection level | IP54 | ||
| Number of supported guns | Three terminal cabinets with 6 guns, line length 5 meters (customizable) | Four terminal cabinets with 8 guns, line length 5 meters (customizable) | |
| Communication interface | Ethernet 4G | ||
| Human-computer interaction | 7-inch touch color screen | ||
| Input characteristics | Input voltage | 380Vac+15%, three-phase five-wire system | |
| Input frequency | 45Hz~ 66Hz | ||
| Input current | ≤1150 A | ||
| Power factor | ≥0.99 (load ≥50%) | ||
| Harmonics | ≤5% (load ≥50%) | ||
| Input power distribution | AC 400Ax3P circuit breaker; single transformer 2-way incoming line | ||
Product Solutions
USER DEMAND
- Willing to invest in charging station construction
- Hope to upgrade existing charging station equipment
- Hope to provide charging supporting service facilities for residential buildings
- Have customer channels and hope to become an agent to sell charging piles
- Have a station with charging piles, but no charging management platform
- Hope to improve the operation of existing charging stations and increase revenue
- Have site resources and hope to build a station
- Have power resources and hope to build a station
SOLUTION
- Provide various types of charging piles to meet the needs of different charging scenarios
- Provide a complete dealer agency policy
- Provide flexible charging pile sales financial service solutions
- Charging platform access services, shared platform users
- Flexible settlement services
- Customized solutions (site assessment, investment return calculation feasibility study report, etc.)
- Professional operation and maintenance team services

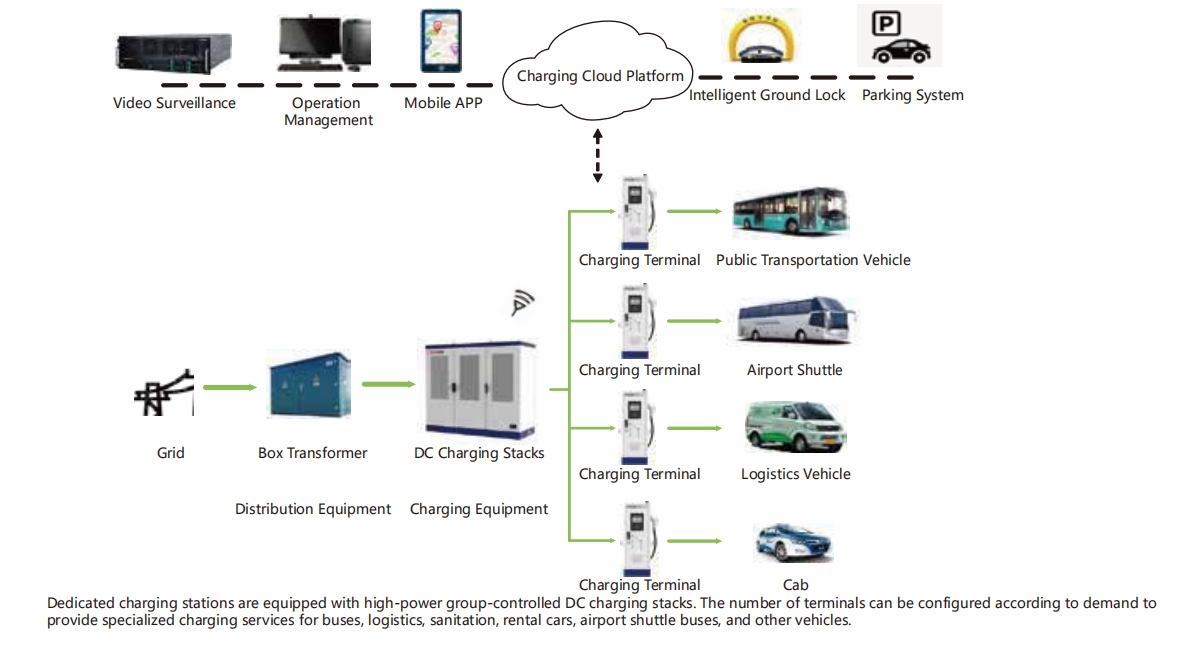

Dedicated fast charging station
Research and developmentintroduction
Microgrid
A vital part of smart grids, microgrids operate reliably in both off-grid and grid-connected modes, enabling intelligent interaction among distributed generation, energy storage, and charging facilities. With advanced energy management systems, they ensure system stability, optimize energy usage, and minimize losses while supporting the closed-loop utilization of renewable energy, contributing to carbon neutrality.
EMS
Serving as the microgrid’s central control, EMS manages data, monitors, controls, and optimizes energy storage system operations efficiently. It adjusts power and voltage parameters to meet load demands, coordinates with the main grid, and reduces energy consumption and system losses. EMS also facilitates islanding operation and reclosing strategies, ensuring system reliability during faults.
EMEWS
This system monitors microgrid operations in real-time, including photovoltaic, energy storage, and charging facilities, enhancing operational efficiency through data analysis and intelligent warnings. Equipped with battery management and communication interfaces, it promptly identifies issues, supports integrated energy station scheduling, and provides data for public safety warnings.
CHARGING PILE MANUFACTURIN
Raw materials
Charging pile shell, circuit board, battery, motor, sensors, etc.
Assembly Production
Assemble the various components according to the design drawings to ensure that the charging pile meets the standard electrical and mechanical performance.
Testing and Debugging
After assembly, production personnel must conduct testing and debugging on the charging pile to ensure performance meets standards. This involves checks on appearance, insulation performance, electrical performance, and road testing to ensure stable performance in various environments.
